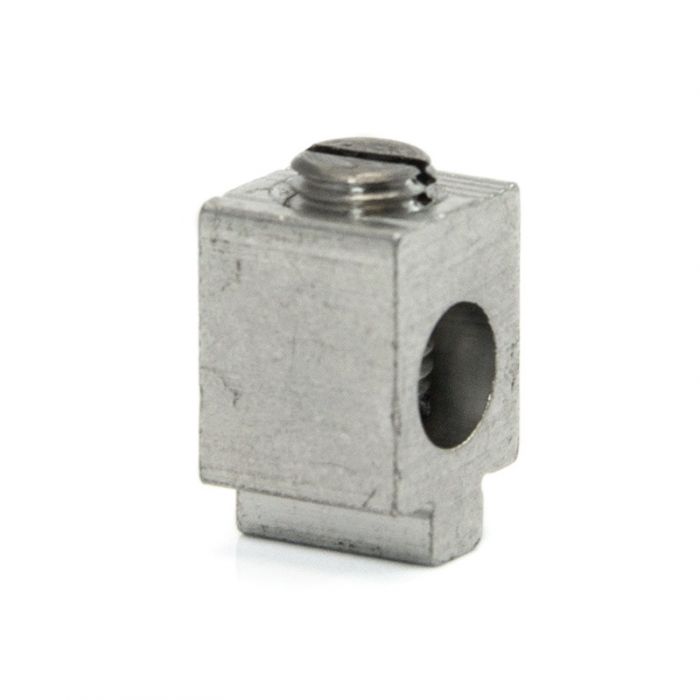

B6A-PCB Solder Mounted Wire Lug for PCB's
- Buy 595 for $0.55 each and save 26%
- Buy 4000 for $0.41 each and save 45%
- Buy 8000 for $0.37 each and save 50%
B6A-PCB: 6-18* AWG, 65 AMP, slotted set screw. 1 leg at .336X.14” with a .10" (2.54mm) PCB penetration. Side wire, and top screw entrance.
One piece Body THT Types: Wave and reflow solderable high current PCB wire terminal lug / connector for high amp power applications. THT (Through Hole Technology). View Soldering Temperature Profiles here. Copper or aluminum wire, stranded and solid wire per UL486 wire code. Solid mass, high conductivity aluminum alloy body for tens of micro ohms range of resistance wire to foil conductivity, low resistance current path. Exceeds IEC volt drop test standards. Variety of wire binding screw options. Variety of THT leg length to accommodate PCB of various thicknesses including multilayer.
Precuations when using SMT and SMT FAQ
*16 AWG, 18 AWG, or fine stranded wires recommend to use wire ferrules.
For More Information Click the Icons Below | |||||||
NO UL,UR |
NO CSA |
RoHS 9/10 |
SKU | B6A-PCB |
---|---|
Number of Wires | 1 Wire |
Condition | New |
FLEX Wire Range | No FLEX Wire |
Screw Type | Steel Slotted Screw |
CSA Canadian Standards Association Certified | No |
UL | Not UL Listed or Recognized |
Meets RoHS | Yes |
