"2-1000L2" (500 - 1000 kcmil AWG) NEMA Double Wire Panelboard Lug
In stock
SKU
2-1000L2

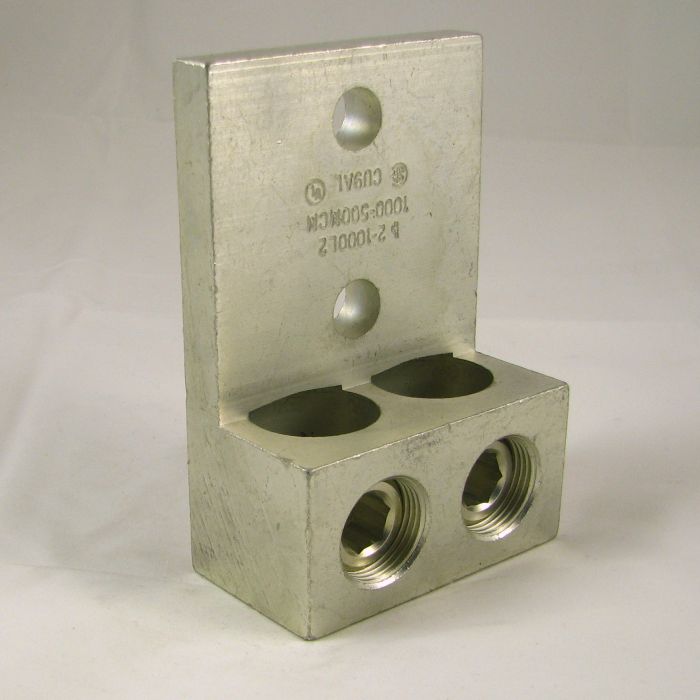

2-1000L2 - 500 - 1000 kcmil AWG wire range, 2 barrel, panel lug aluminum or copper wire, CU9AL, 90C temperature rating, NEMA mounting holes and spacing; this is not a NEMA tested part, two mounting holes for 1/2" bolts.
UL Listed, CSA Certified.
BMC brand. Made in the USA from domestic and imported parts.
$25.07
- Buy 15 for $18.64 each and save 26%
- Buy 30 for $13.98 each and save 44%
2-1000L2 - 500 - 1000 kcmil AWG wire range, 2 barrel, panel lug aluminum or copper wire, CU9AL, 90C temperature rating, NEMA mounting holes and spacing; this is not a NEMA tested part, two mounting holes for 1/2" bolts, UL Listed, CSA Certified. BMC brand. Made in the USA from domestic and imported parts.
 |
Comparison of Switchgears, Switchboards, and Panelboards
| For More Information Click the Icons Below | |||||
 |
 |
 |
 |
 |
RoHS 10/10 |
Per Wire in Power Distribution or Collection Mode
|
545 Amp 75C Cu Wire |
|
|
615 Amp 90C Cu Wire |
|
| 445 Amp 75C Al Wire | |
|
500 Amp 90C Al Wire |
| SKU | 2-1000L2 |
|---|---|
| Number of Wires | 2 Wires |
| Condition | New |
| AWG Wire Range | 1000 - 500 kcmil |
| FLEX Wire Range | No FLEX Wire |
| Screw Type | Hex Socket |
| CSA Canadian Standards Association Certified | Yes |
| UL | UL Listed (UL) |
| Meets RoHS | Yes |
