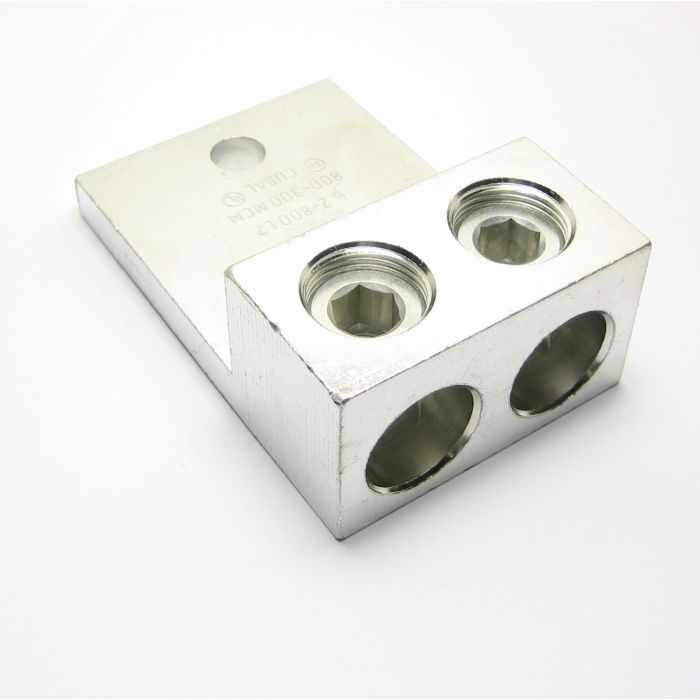

"2-800L2" NEMA Double Barrel Panel Lug (300 - 800 kcmil AWG)
In stock
SKU
2-800L2
2-800L2 300 - 800 kcmil AWG wire range, 2 barrel, panel lug aluminum or copper wire, CU9AL, 90C temperature rating, NEMA mounting holes and spacing; this is not a NEMA tested part, two mounting holes for 1/2" bolts.
UL Listed, CSA Certified.
BMC brand. Made in the USA from domestic and imported parts.
$24.75
- Buy 14 for $18.40 each and save 26%
- Buy 32 for $13.80 each and save 44%
2-800L2 300 - 800 kcmil AWG wire range, 2 barrel, panel lug aluminum or copper wire, CU9AL, 90C temperature rating, NEMA mounting holes and spacing; this is not a NEMA tested part, two mounting holes for 1/2" bolts, UL Listed, CSA Certified. BMC brand. Made in the USA from domestic and imported parts.
Convenient inspection window to visually inspect full conductor insertion
Made with 6061-T6 aluminum to provide maximum electrical contact and performance
Electro tin-plated, to warrant against corrosion
Plated aluminum or steel screw provides durable long lasting contact between the conductor and connector
 |
Comparison of Switchgears, Switchboards, and Panelboards
| For More Information Click the Icons Below | |||||
 |
 |
 |
 |
 |
RoHS 10/10 |
Per Wire in Power Distribution or Collection Mode
|
490 Amp 75C Cu Wire |
|
|
555 Amp 90C Cu Wire |
|
| 395 Amp 75C Al Wire | |
|
450 Amp 90C Al Wire |
| SKU | 2-800L2 |
|---|---|
| Number of Wires | 2 Wires |
| Condition | New |
| AWG Wire Range | 800-300 kcmil |
| FLEX Wire Range | No FLEX Wire |
| Screw Type | Hex Socket |
| CSA Canadian Standards Association Certified | Yes |
| UL | UL Listed (UL) |
| Meets RoHS | Yes |
