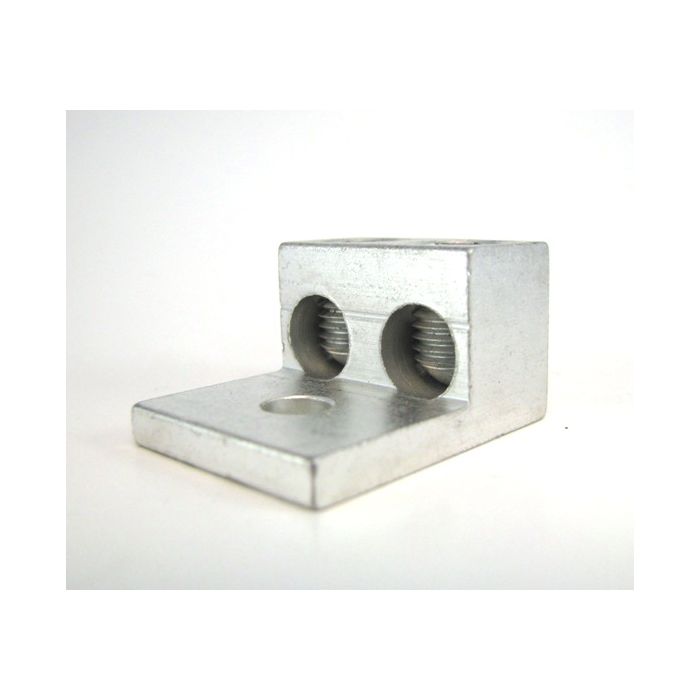

"2S1/0" Double Wire Lugs (1/0-14 AWG) & FLEX Wire (1-8 AWG)
In stock
SKU
2S1/0
2S1/0" 1/0-14 AWG wire range, 2 barrel, aluminum or copper wire, CU9AL, 90C temperature rating, single mounting hole, UL Listed, CSA Certified.
UL & CSA Approved for
Multiple Wires 2X #14 to 2X #4
and FLEX wire Class G-K sizes #8-#1 AWG
$2.30
- Buy 170 for $1.71 each and save 26%
- Buy 500 for $1.28 each and save 44%
"2S1/0" 1/0-14 AWG wire range, and multiple (dual) wires and FLEX wire, 1-8 AWG, G-K including mm2 class 5, 2 barrel, aluminum or copper wire, CU9AL, 90C temperature rating, single 1/4" bolt mounting hole, UL Listed, CSA Certified. Made in the USA.
Use of Ferrules (UL Listed) on 1-8 AWG
- Convenient inspection window to visually inspect full conductor insertion.
- Made with 6061-T6 aluminum to provide maximum electrical contact and performance.
- Electro tin-plated, to warrant against corrosion.
- Plated aluminum or steel screw provides durable long lasting contact between the conductor and connector.
 |
DIY Modify Mounting Holes: Cat. No. 2S1/0 Style No. ALL
|
CSA and UL permitted field modification by customer per the Guide for Field Drilling Mounting Holes and the 2S1/0 Print | |
 |
| For More Information Click the Icons Below | ||||||
 |
 |
 |
 |
 |
|
RoHS 9/10 |
B&C Wire Size & Torque Rating
|
1/0-3 AWG
|
50 Inch LBS.
|
|
4-6 AWG
|
45 Inch LBS.
|
|
8 AWG
|
40 Inch LBS.
|
|
10-14 AWG
|
35 Inch LBS.
|
Class G-K Flex Wire Size & Torque Rating
|
1-3 AWG
|
55
|
|
4-6 AWG
|
50
|
|
8 AWG
|
45
|
| 150 Amp 75C Cu Wire |
| 170 Amp 90C Cu Wire |
| 120 Amp 75C Al Wire |
| 135 Amp 90C Al Wire |
| Per Wire in Power Distribution or Collection Mode |
| SKU | 2S1/0 |
|---|---|
| Category No. | 2S1/0 |
| Style No. | ALL |
| Number of Wires | 2 Wires |
| Condition | New |
| AWG Wire Range | 1/0 - 14 AWG |
| FLEX Wire Range | 1-8 AWG |
| Screw Type | Slotted Screw |
| CSA Canadian Standards Association Certified | Yes |
| UL | UL Listed (UL) |
| Meets RoHS | Yes |
| Cross Reference Part Numbers: | ADR11-21, 2-0T, K2A-25U, DLA-112, 2AB-112, DLA-112, AML1/0-2, AA-1/0, AD-125, 87-040, AU-0, AU-1/0I, LAM2A1/0-14-6, L2A-0 |
