"2S2/0" Double Wire Lug (2/0-14 AWG) & FLEX Wire (1/0-14 AWG)
In stock
SKU
2S2/0
.png){kind=small}
$2.60
- Buy 160 for $1.94 each and save 25%
- Buy 500 for $1.45 each and save 44%

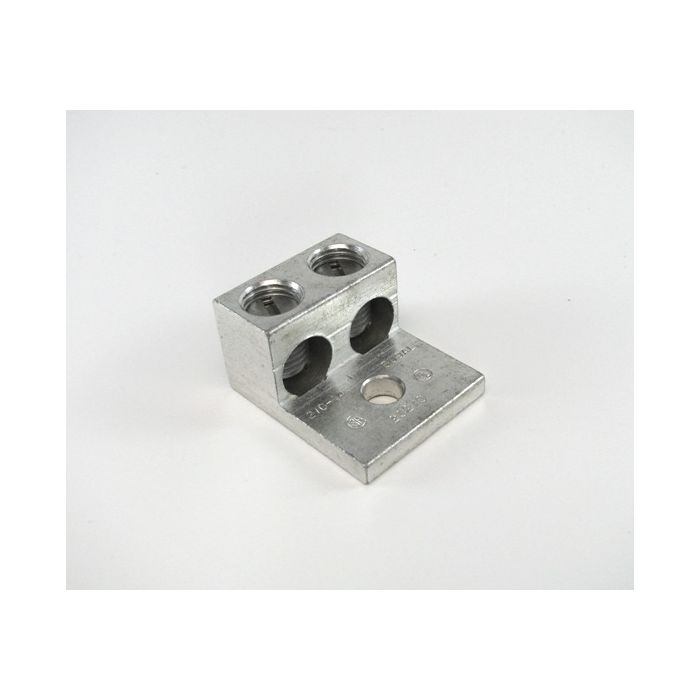

"2S2/0" 2/0-14 AWG wire range, and FLEX wire, 1/0-14, G-K including mm2 class 5, 2 barrel, aluminum or copper wire, CU9AL, 90C temperature rating, single 1/4" bolt mounting hole, UL Listed, CSA Certified. Shipped with regular slotted screw or TUFF SLOT™ closed slot which guides driver bit for rapid assembly (subject to availability). TUFF SLOT™ is a trademark of IHI Connectors® Made in the USA from domestic and imported parts.
Use of Ferrules (UL Listed) on 1/0-14 AWG
Convenient inspection window to visually inspect full conductor insertion
Made with 6061-T6 aluminum to provide maximum electrical contact and performance
Electro tin-plated, to protect against corrosion
Plated aluminum screw provides durable long lasting contact between the conductor and connector
Made with 6061-T6 aluminum to provide maximum electrical contact and performance
Electro tin-plated, to protect against corrosion
Plated aluminum screw provides durable long lasting contact between the conductor and connector
 |
B&C Wire Size & Torque Rating
|
2/0-3 AWG
|
50 IN. LBS.
|
|
4-6 AWG
|
45 IN. LBS.
|
|
8 AWG
|
40 IN. LBS.
|
|
10-14 AWG
|
35 IN. LBS.
|
Class G-K Flex Wire Size & Torque Rating
|
1/0-1 AWG
|
75 IN. LBS.
|
|
1-4 AWG
|
55 IN. LBS.
|
|
4-8 AWG
|
50 IN. LBS.
|
| 8-10 AWG | 45 IN. LBS. |
| 10-14 AWG | 40 IN. LBS. |
|
175 Amp 75C Cu Wire
|
|
195 Amp 90C Cu Wire
|
|
135 Amp 75C Al Wire
|
|
150 Amp 90C Al Wire
|
|
Per Wire in Power Distribution or Collection Mode
|
| For More Information Click the Icons Below | ||||||
 |
 |
 |
 |
 |
 |
RoHS 9/10 |
| SKU | 2S2/0 |
|---|---|
| Number of Wires | 2 Wires |
| Condition | New |
| AWG Wire Range | 2/0 - 14 AWG |
| FLEX Wire Range | 1/0-14 AWG |
| Screw Type | Slotted Screw |
| CSA Canadian Standards Association Certified | Yes |
| UL | UL Listed (UL) |
| Meets RoHS | Yes |
