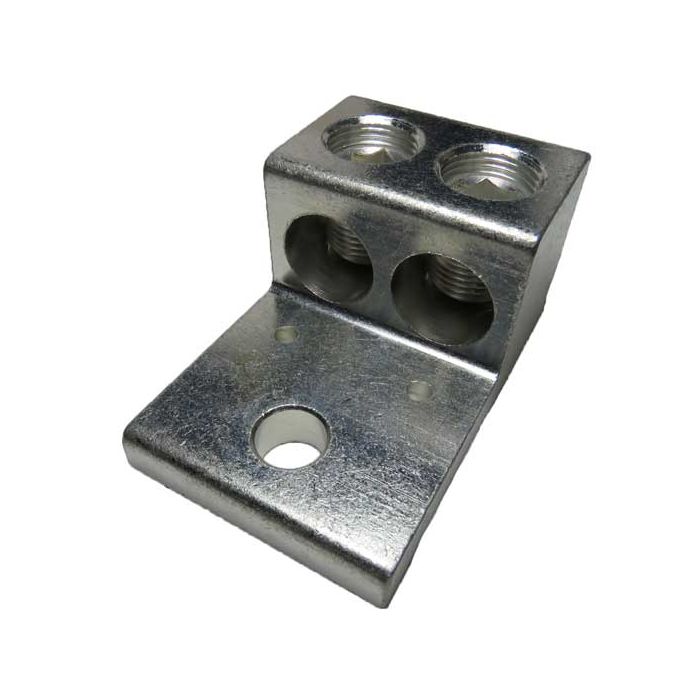

"2S500-53-63" 500 kcmil-4 AWG
In stock
SKU
2S500-53-63
"2S500-53-63" 500 kcmil-4 AWG wire range, 2 barrel, aluminum or copper wire, CU9AL, 90C temperature rating, single 1/2" bolt mounting hole. NEMA mounting holes and spacing; this is not a NEMA tested part.
UL Listed, CSA Certified. IHI brand.
Made in the USA from domestic and imported parts..
$30.34
- Buy 25 for $22.55 each and save 26%
- Buy 55 for $16.91 each and save 44%
"2S500-53-63" 500 kcmil-4 AWG wire range, and FLEX wire, 350 kcmil-4 AWG, class G-K including mm2 class 5, 2 barrel, aluminum or copper wire, CU9AL, 90C temperature rating, single 1/2" bolt mounting hole, NEMA mounting holes and spacing; this is not a NEMA tested part, UL Listed, CSA Certified. Made in the USA. UL & CSA Approved for FLEX wire Class G-K sizes 350 kcmil-4 AWG.
Use of Ferrules (UL Listed) on 350 kcmil-4 AWG
 |
| For More Information Click the Icons Below | ||||||
 |
 |
 |
 |
NO CSA |
|
RoHS 10/10 |
| SKU | 2S500-53-63 |
|---|---|
| Number of Wires | 2 Wires |
| Condition | New |
| AWG Wire Range | 500 kcmil - 4 AWG |
| Screw Type | Hex Socket |
| CSA Canadian Standards Association Certified | Yes |
| UL | UL Listed (UL) |
| Meets RoHS | Yes |
