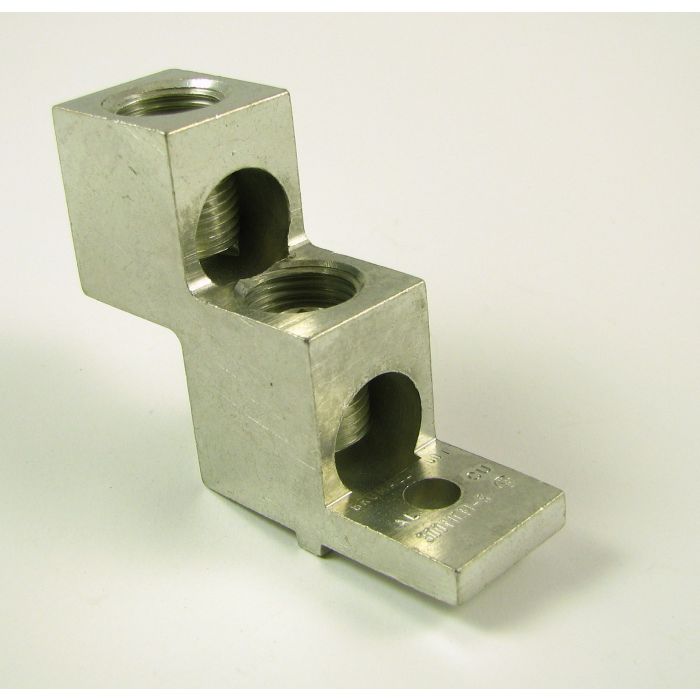

"300TP-2" (6 -300 kcmil AWG) Lug with Turn Prevent
In stock
SKU
300TP-2
"300TP-2" 6 -300 kcmil AWG wire range, 2 barrel, Stacker type, Turn Prevent Rib, aluminum or copper wire, CU9AL, 90C temperature rating, one mounting hole for 1/4" bolt. NEMA mounting holes and spacing; this is not a NEMA tested part.
UL Listed, CSA Certified.
Brumall brand. Made in the USA from domestic and imported parts.
$7.85
- Buy 50 for $5.83 each and save 26%
- Buy 200 for $4.37 each and save 44%
300TP-2 6 -300 kcmil AWG wire range, 2 barrel, Stacker type, Turn Prevent Rib, aluminum or copper wire, CU9AL, 90C temperature rating, one mounting hole for 1/4" bolt, NEMA mounting holes and spacing; this is not a NEMA tested part, UL Listed, CSA Certified. Brumall brand. Made in the USA from domestic and imported parts.
 |
| For More Information Click the Icons Below | |||||
 |
 |
 |
 |
RoHS 10/10 |
|
Per Wire in Power Distribution or Collection Mode
|
285 Amp 75C Cu Wire |
|
|
320 Amp 90C Cu Wire |
|
| 230 Amp 75C Al Wire | |
|
255 Amp 90C Al Wire |
| SKU | 300TP-2 |
|---|---|
| Number of Wires | 2 Wires |
| Condition | New |
| AWG Wire Range | 300 kcmil - 6 AWG |
| FLEX Wire Range | No FLEX Wire |
| Screw Type | Hex Socket |
| CSA Canadian Standards Association Certified | Yes |
| UL | UL Listed (UL) |
| Meets RoHS | Yes |
