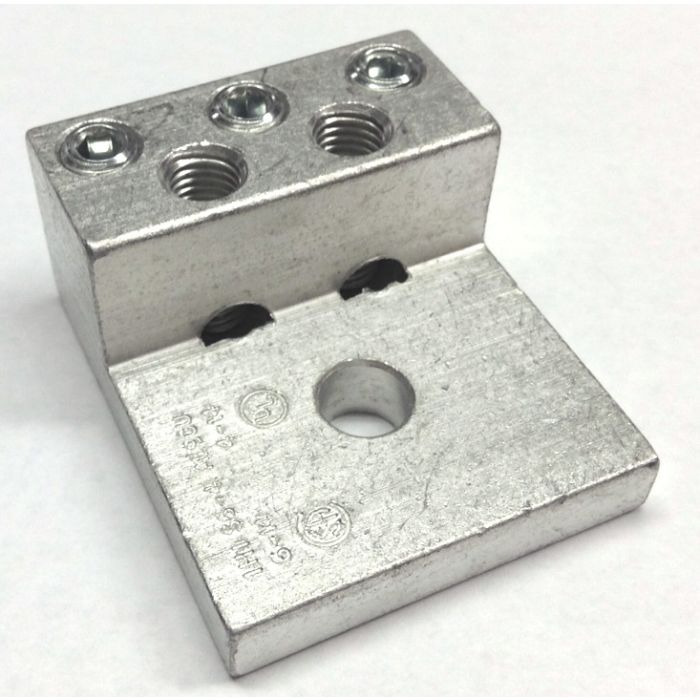

"3S6-2S4-HEX" 5 barrel / Wires (3) 14 - 6 AWG plus (2) 14 - 4 AWG Wire Range
In stock
SKU
3S6-2S4-HEX
"3S6-2S4-HEX" Five 5 barrel /wires (3) 14 - 6 AWG plus (2) 14 - 4 AWG wire range
UL Listed, CSA Certified. IHI brand. Made in the USA.
$5.25
- Buy 70 for $3.90 each and save 26%
- Buy 333 for $2.93 each and save 44%
"3S6-2S4-HEX" Five 5 barrel /wires (3) 14 - 6 AWG plus (2) 14 - 4 AWG wire range, Grounding or Power Distribution or Power Collection Lug. UL Listed for General Use including grounding in dry locations. Up to Five wires (5 conductors) aluminum or copper wire, CU9AL, 90C temperature rating, one (1) 1/4" Bolt mounting hole .
UL Listed, CSA Certified. IHI brand. Made in the USA.
Total current rating with 5 full size copper wires 365 Amp.
 |
| For More Information Click the Icons Below | ||||||
 |
 |
 |
 |
 |
|
RoHS 10/10 |
B&C Wire Size & Torque Rating
AWG 6 PORTS
|
6 AWG
|
35 IN. LBS.
|
| 8 AWG | 25 IN. LBS. |
| 10-14 AWG | 20 IN. LBS. |
| 65 Amp 75C Cu Wire |
|
75 Amp 90C Cu Wire
|
|
50 Amp 75C Al Wire
|
|
60 Amp 90C Al Wire
|
| Per Wire in Power Distribution or Collection Mode |
B&C Wire Size & Torque Rating
AWG 4
|
4-6 AWG -SOL/STR
|
20 IN. LBS.
|
| 8 AWG -SOL/STR | 45 IN. LBS. |
| 10 AWG -SOL | 40 IN. LBS. |
| 10-14 AWG -STR | 35 IN. LBS. |
| 85 Amp 75C Cu Wire |
|
95 Amp 90C Cu Wire
|
|
65 Amp 75C Al Wire
|
|
75 Amp 90C Al Wire
|
| Per Wire in Power Distribution or Collection Mode |
| SKU | 3S6-2S4-HEX |
|---|---|
| Number of Wires | 5 Wires |
| Condition | New |
| AWG Wire Range | 6 - 14 AWG |
| FLEX Wire Range | No FLEX Wire |
| Screw Type | Hex Socket |
| CSA Canadian Standards Association Certified | Yes |
| UL | UL Listed (UL) |
| Meets RoHS | Yes |
