"4-5,3" 4-14 AWG Neutral/Ground Bar
In stock
SKU
4-5,3
Limited quantity available. For larger quantities please email us at sales@lugsdirect.com or call 330-562-8983.
CU9AL 90C Rating, UL Recognized, CSA Certified.
$1.32
- Buy 335 for $0.98 each and save 26%
- Buy 1500 for $0.73 each and save 45%

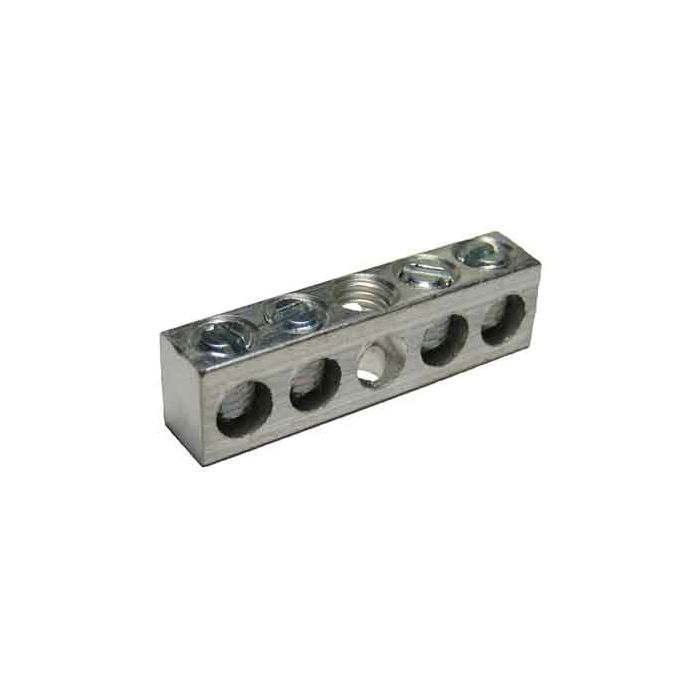

Neutral Bar (4) circuits , (1) #10 mounting hole wire range 4-14 AWG Neutral/Ground bar, Dual Rated, Aluminum & Copper wire, CU9AL 90C Rating, UL Recognized, CSA Certified.
Q. Can I use a ZMVV2 UL Recognized
(not ZMVV Listed) wire connector for grounding?
A. Only after further UL investigation for the mounting means and probably other “Conditions of Acceptability” that are defined in the ZMVV2 Recognized file and with more delay and added evaluation cost. That is not normally considered worth the trouble if a Listed ZMVV wire pressure connector is available.
-CONSTRUCTION NOTES-
| The tolerance between mounting holes is +/-.015" |
| The mounting hole is .201 +.006/-.003. |
| The listed overall length of each bar is +/-.020 |
| Material is High Strength Tempered aluminum 6061 with conductivity approx. 43% IACS. |
| Aluminum body is Tin Plated to resist oxidation and galvanic corrosion. |
| Screws are Zinc Plated Steel with Trivalent (Cr+3) Chromate conversion top layer. |
| For More Information Click the Icons Below | |||||
 |
 |
%204-5,3%20Agency%20Label.jpg "Agency Label"){kind=small} |
 |
 |
RoHS 10/10 |
| SKU | 4-5,3 |
|---|---|
| Number of Wires | 4 Wires |
| Condition | New |
| AWG Wire Range | 4 - 14 AWG |
| FLEX Wire Range | No FLEX Wire |
| Screw Type | Steel Slotted Screw |
| CSA Canadian Standards Association Certified | Yes |
| UL | UL Recognized (UR) |
| Meets RoHS | Yes |
