B12-NM-SMT-RLM-KIT 12 AWG High AMP PCB Wire Lug 12-16* AWG
- Buy 615 for $0.89 each and save 25%
- Buy 5000 for $0.66 each and save 45%

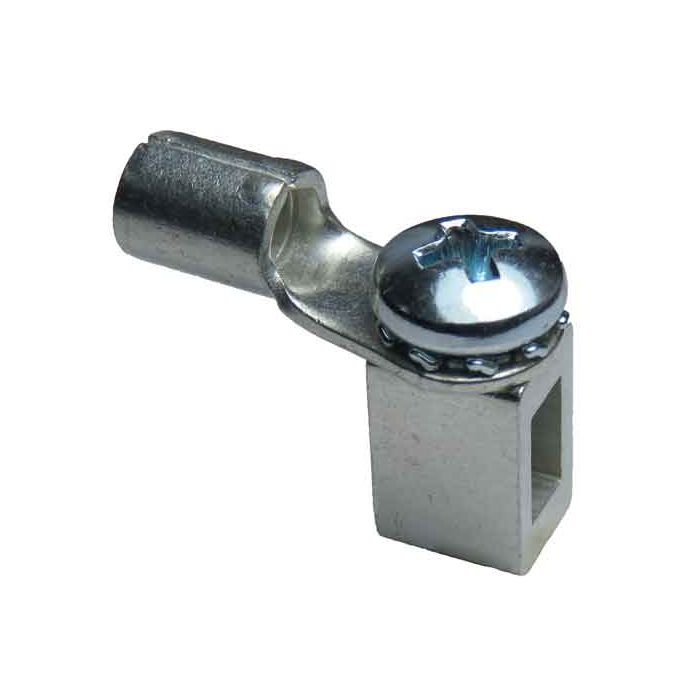

"B12-NM-SMT" 12 AWG, 30 AMP at 75°C, ring lug mount with phillips screw and washer, Wire range depends on the wire range of the ring lug. Nickle/Tin plated aluminum. Can be used as a PCB spacer, riser, current shunt, and mounting block. Side wire, and top screw entrance. IHI Brand.
One piece SMT / SMD Solderable Body Types Wave and reflow solderable high current PCB wire terminal lug / connector for high amp power applications. SMT / SMD (Surface Mount Technology, Surface Mount Device). View Soldering Temperature Profiles here. Copper wire, stranded and solid wire per UL486 wire code. Solid mass, high conductivity aluminum alloy body for tens of micro ohms range of resistance wire to foil conductivity, low resistance current path. Exceeds IEC volt drop test standards. Variety of wire binding screw options.
| SKU | B12-NM-SMT-RLM |
|---|---|
| Number of Wires | 1 Wire |
| Condition | New |
| AWG Wire Range | 12 - 16 AWG |
| Screw Type | Phillips Head |
| CSA Canadian Standards Association Certified | No |
| UL | Not UL Listed or Recognized |
| Meets RoHS | Yes |
