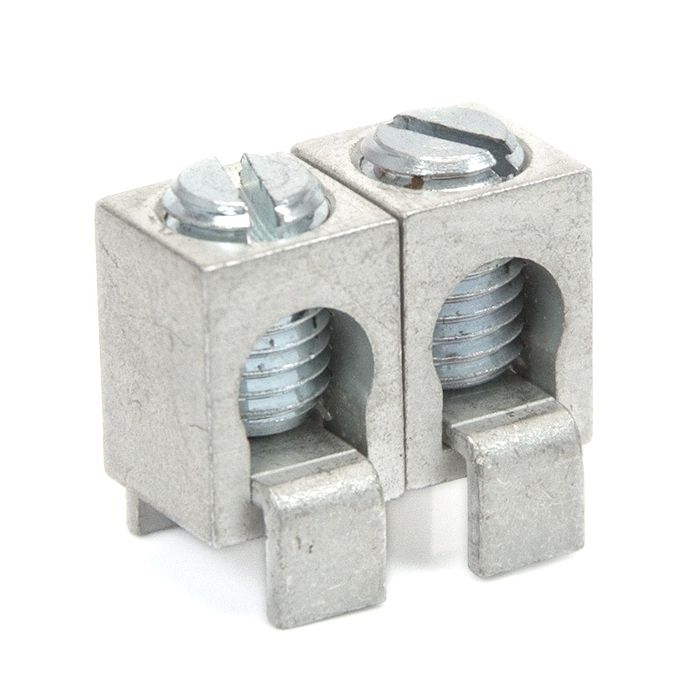

B2A-2PCB Solder Mounted Wire Lug for PCB's
In stock
SKU
B2A-2PCB
For AWG (2)3-14 Copper or Aluminum Wire, Max. Current (copper wire) 115A/100A. 2 Slotted set screws.
UL RECOGNIZED
CSA CERTIFIED
CU7AL
CSA CERTIFIED
CU7AL
$1.97
- Buy 230 for $1.47 each and save 25%
- Buy 1000 for $1.10 each and save 44%
- Buy 2000 for $0.99 each and save 50%
High Amp PCB Connectors, ideal for electronic power inverters, solar energy controllers, battery charger controllers, wind energy controllers, high wattage heater controllers, current controllers, power supplies, lightning arresters, and any high amperage application with up to 100 amps per connector with properly sized printed circuit board layout.
| For More Information Click the Icons Below | |||||||
 |
 |
 |
 |
 |
 |
 |
RoHS 10/10 |
Detailed Related Product Chart
| Image | PART No. |
WIRE
RANGE
|
MAX.
CURRENT
(copper wire)
|
WIRE /
SCREW
ACCESS
|
SCREW
DRIVE /
HEAD
|
SCREW
MAT'L
|
BUS
MATERIAL
|
MOUNT
STYLE
|
MOUNT STYLE | ||||||||||
(X500).JPG) |
B2A-2PCB
|
AWG
(2)3 -14
METRIC
(25-2.5mm2)
|
115A/85A
PER LUG
SHUNTED PAIR |
SIDE / TOP
|
SLOTTED
SET
SCREW
|
ZINC
PLATED
STEEL
|
TIN PLATED
COPPER
STAPLE,
SOLDERABLE |
2 LEGS
.24 X .05 (6.1X1.3mm) &
1 LEG
.67X.05"
(17X1.3mm) |
0.14" 3.55mm
penetration
|
||||||||||
|
*Other Optional Choices: CLICK PART NUMBER FOR DIRECT LINK.
*Differences from main part, highlighted in yellow....
|
|||||||||||||||||||
|
AWG
(2)3-14
METRIC
(25-2.5mm2)
|
115A/85A
PER LUG
SHUNTED PAIR |
SIDE / TOP |
5/32” (4mm)
HEX SKT
SCREW
(X2) |
ZINC
PLATED
STEEL
|
TIN PLATED
COPPER
STAPLE,
SOLDERABLE |
2 LEGS
.24 X .05 (6.1X1.3mm) &
1 LEG
.67X.05"
(17X1.3mm) |
0.14" 3.55mm
penetration
|
||||||||||||
.JPG) |
AWG
(2)3 -14
METRIC
(25-2.5mm2)
|
115A/85A
|
SIDE / TOP |
SLOTTED
SET
SCREW
|
ZINC
PLATED
STEEL
|
TIN PLATED
COPPER
STAPLE,
SOLDERABLE |
2 LEGS .24 X .05 (6.1X1.3mm) |
0.14" 3.55mm
penetration |
|||||||||||
.JPG) |
B2A-PCB-HEX |
AWG
(2)3 -14
METRIC
(25-2.5mm2)
|
115A/85A | SIDE / TOP |
5/32”
(4mm)
HEX SET
SCREW
|
ZINC
PLATED
STEEL
|
TIN PLATED
COPPER
STAPLE,
SOLDERABLE
|
2 LEGS .24 X .05 (6.1X1.3mm) |
0.14" 3.55mm
penetration
|
||||||||||
%232-14%20Top%20Access%20Lug38.JPG) |
B2A-PCB-45 |
AWG
(2)3 -14
METRIC
(25-2.5mm2)
|
115A/85A |
TOP AT 45
DEGREES
|
SLOTTED
SET
SCREW
|
ZINC
PLATED
STEEL
|
TIN PLATED
COPPER
STAPLE,
SOLDERABLE
|
2 LEGS .24 X .05 (6.1X1.3mm) |
3 options: |
||||||||||
%232-14%20Top%20Access%20Lug14.JPG) |
B2A-PCB-45-HEX |
AWG
(2)3 -14
METRIC
(25-2.5mm2)
|
115A/85A |
TOP AT 45
DEGREES
|
5/32”
(4mm)
HEX SET
SCREW
|
ZINC
PLATED
STEEL
|
TIN PLATED
COPPER
STAPLE,
SOLDERABLE
|
2 LEGS .24 X .05 (6.1X1.3mm) |
3 options: |
||||||||||
| SKU | B2A-2PCB |
|---|---|
| Number of Wires | 2 Wires |
| Condition | New |
| AWG Wire Range | 4 - 14 AWG |
| FLEX Wire Range | No FLEX Wire |
| Screw Type | Steel Slotted Screw |
| CSA Canadian Standards Association Certified | Yes |
| UL | UL Recognized (UR) |
| Meets RoHS | Yes |
