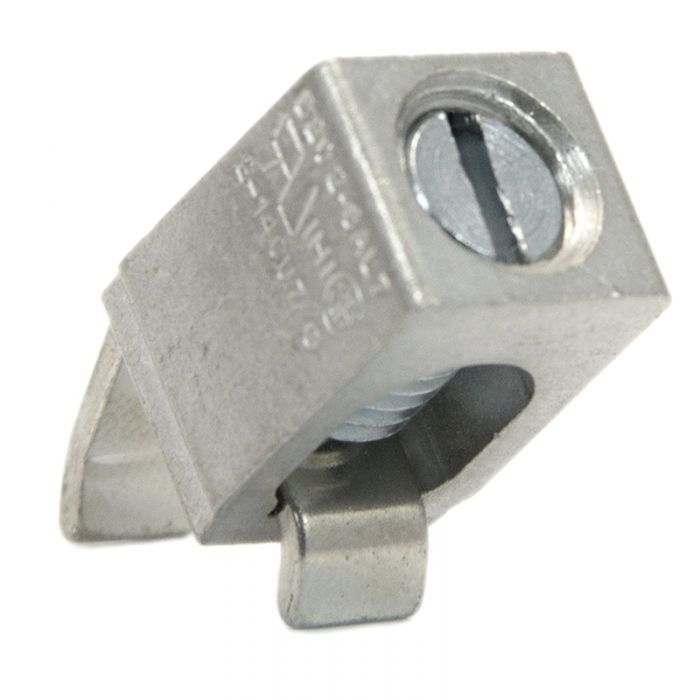

B2A-PCB-45 Solder Mounted Wire Lug for PCB's
In stock
SKU
B2A-PCB-45
(2)3-14 AWG Copper or Aluminum Wire. Max. current (copper wire) 115A/100A. Slotted set screw. 2 LEGS .24 X .05
UL RECOGNIZED
CSA CERTIFIED
CU7AL
$1.14
- Buy 255 for $0.85 each and save 25%
- Buy 2000 for $0.64 each and save 44%
- Buy 4000 for $0.57 each and save 50%
High Amp PCB Connectors, ideal for electronic power inverters, solar energy controllers, battery charger controllers, wind energy controllers, high wattage heater controllers, current controllers, power supplies, lightning arresters, and any high amperage application with up to 100 amps per connector with properly sized printed circuit board layout.
| For More Information Click the Icons Below | |||||||
 |
 |
 |
 |
 |
 |
 |
RoHS 10/10 |
| Images |
PART No.
|
WIRE
RANGE
|
MAX.
CURRENT
(copper wire)
|
WIRE /
SCREW
ACCESS
|
SCREW
DRIVE /
HEAD
|
SCREW
MAT’L
|
BUS
MAT'L
|
MOUNT
STYLE
|
MOUNT
|
%232-14%20Top%20Access%20Lug(1)800px.JPG) |
B2A-PCB-45 |
AWG
(2)3 -14
METRIC
(25-2.5mm2)
|
115A/100A
|
TOP AT
45
DEGREES
|
SLOTTED
SET
SCREW
|
ZINC
PLATED
STEEL
|
TIN PLATED
COPPER
STAPLE,
SOLDERABLE |
2 LEGS
.24 X .05
(6.1X1.3mm) |
3 options:
.09" 2.2mm .12" 3.0mm .175" 4.4mm |
|
*Other Optional Choices: CLICK PART NUMBER FOR DIRECT LINK.
*Differences from main part, highlighted in yellow....
|
|||||||||
%232-14%20Top%20Access%20Lug14.JPG) |
|
AWG
(2)3 -14
METRIC
(25-2.5mm2)
|
115A/100A
|
TOP AT
45
DEGREES
|
5/32” (4mm)
HEX SET
SCREW
|
ZINC
PLATED
STEEL
|
TIN PLATED
COPPER
STAPLE,
SOLDERABLE
|
2 LEGS
.24 X .05 (6.1X1.3mm) |
3 options:
.09" 2.2mm .12" 3.0mm .175" 4.4mm |
.JPG) |
|
AWG
(2)3 -14
METRIC
(25-2.5mm2)
|
115A/100A
|
SIDE /
TOP
|
SLOTTED
SET
SCREW
|
ZINC
PLATED
STEEL
|
TIN PLATED
COPPER
STAPLE,
SOLDERABLE
|
2 LEGS
.24 X .05 (6.1X1.3mm) |
0.14"
3.55mm
penetration
|
.JPG) |
|
AWG
(2)3 -14
METRIC
(25-2.5mm2)
|
115A/100A
|
SIDE /
TOP
|
5/32” (4mm)
HEX SET
SCREW
|
ZINC
PLATED
STEEL
|
TIN PLATED
COPPER
STAPLE,
SOLDERABLE
|
2 LEGS
.24 X .05 (6.1X1.3mm) |
0.14"
3.55mm
penetration
|
(X500).JPG) |
|
AWG
(2)3 -14
METRIC
(25-2.5mm2)
|
115A/100A
PER LUG
SHUNTED PAIR
|
SIDE /
TOP
|
(X2)
SLOTTED
SET
SCREW
|
ZINC
PLATED
STEEL
|
TIN PLATED
COPPER
TAPLE,
SOLDERABLE
|
2 LEGS
.24 X .05 (6.1X1.3mm) & 1 LEG
.67X.05"
(17X1.3mm) |
0.14"
3.55mm
penetration
|
.JPG) |
|
AWG
(2)3 -14
METRIC
(25-2.5mm2)
|
115A/100A
PER LUG SHUNTED PAIR
|
SIDE /
TOP
|
5/32” (4mm)
HEX SET
SCREW
(X2)
|
ZINC
PLATED
STEEL
|
TIN PLATED
COPPER
STAPLE
SOLDERABLE
|
2 LEGS
.24 X .05 (6.1X1.3mm) &
1 LEG
.67X.05"
(17X1.3mm) |
0.14"
3.55mm
penetration
|
| SKU | B2A-PCB-45 |
|---|---|
| Number of Wires | 1 Wire |
| Condition | New |
| AWG Wire Range | 4 - 14 AWG |
| FLEX Wire Range | No FLEX Wire |
| Screw Type | Steel Slotted Screw |
| CSA Canadian Standards Association Certified | Yes |
| UL | UL Recognized (UR) |
| Meets RoHS | Yes |
