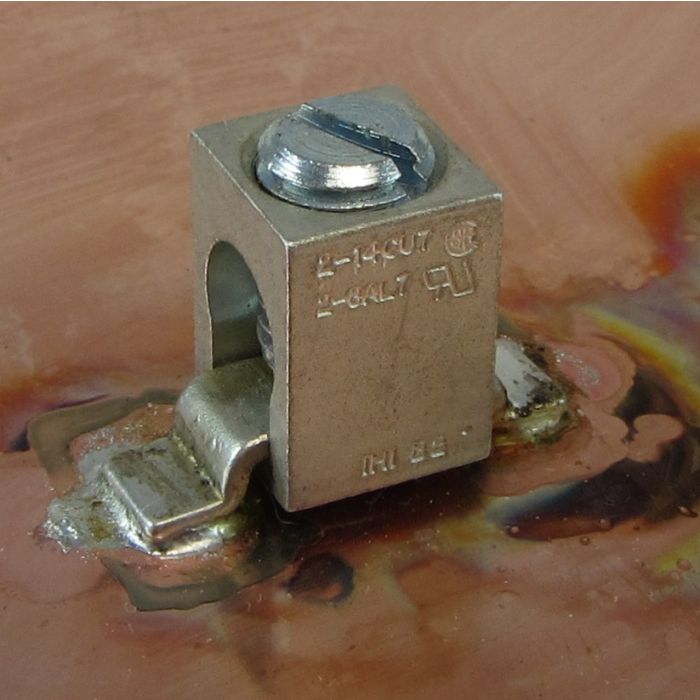

B2A-PCB-SMT Solder Mounted Wire Lug for PCB's
In stock
SKU
B2A-PCB-SMT
(2)3-14 AWG, 115A/100A AMP, slotted set screw. Side wire, and top screw entrance.
UL RECOGNIZED
CSA CERTIFIED
CU7AL
CSA CERTIFIED
CU7AL
$1.02
- Buy 470 for $0.76 each and save 25%
- Buy 2000 for $0.57 each and save 44%
- Buy 4000 for $0.51 each and save 50%
B2A-PCB-SMT: (2)3-14 AWG, 115A/100A AMP, slotted set screw. Side wire, and top screw entrance.
One piece SMT / SMD Solderable Body Types: Wave and reflow solderable high current PCB wire terminal lug / connector for high amp power applications. SMT / SMD (Surface Mount Technology, Surface Mount Device). Copper or aluminum wire, stranded and solid wire per UL486 wire code. Solid mass, high conductivity aluminum alloy body for tens of micro ohms range of resistance wire to foil conductivity, low resistance current path. Exceeds IEC volt drop test standards. Variety of wire binding screw options.
| For More Information Click the Icons Below | |||||||
 |
 |
 |
 |
 |
 |
 |
RoHS 10/10 |
| SKU | B2A-PCB-SMT |
|---|---|
| Number of Wires | 1 Wire |
| Condition | New |
| AWG Wire Range | 4 - 14 AWG |
| FLEX Wire Range | No FLEX Wire |
| Screw Type | Steel Slotted Screw |
| CSA Canadian Standards Association Certified | Yes |
| UL | UL Recognized (UR) |
| Meets RoHS | Yes |
