"B2A-PCB-SS" 4-14 AWG

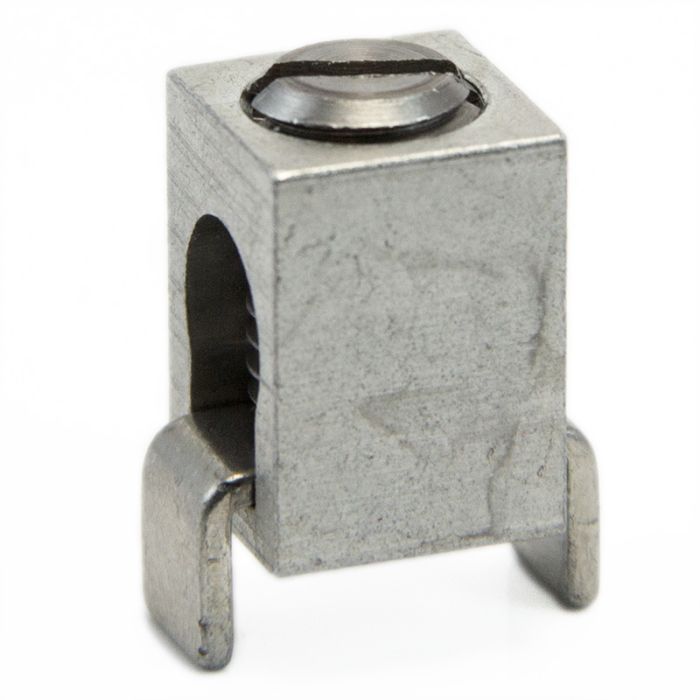

"B2A-PCB-SS" (2)3-14 AWG, 115A/100A AMP, stainless steel screw. 2 legs (.24X.05”) with a 0.16" (4mm) PCB penetration. Side wire, and top screw entrance.
- Buy 190 for $1.15 each and save 26%
- Buy 2000 for $0.86 each and save 45%
- Buy 4000 for $0.78 each and save 50%
B2A-PCB-SS: (2)3-14 AWG, 115A/100A AMP, stainless steel screw. 2 legs (.24X.05”) with a 0.16" (4mm) PCB penetration. Side wire, and top screw entrance.
Body and Staple THT Types
Wave and reflow solderable high current PCB wire terminal lug / connector for high amp power applications. THT (Through Hole Technology). Copper or aluminum wire, stranded and solid wire per UL486 wire code. Solid copper bus staple for tens of micro ohms range of copper to copper high conductivity, low resistance current path. Meets IEC volt drop test standards.
Stainless steel screw, and tin plated copper staple, solderable
| For More Information Click the Icons Below | |||||||
 |
 |
 |
 |
 |
 |
 |
RoHS 10/10 |
| SKU | B2A-PCB-SS |
|---|---|
| Number of Wires | 1 Wire |
| Condition | New |
| AWG Wire Range | 4 - 14 AWG |
| FLEX Wire Range | No FLEX Wire |
| Screw Type | Stainless Steel Slotted Screw |
| CSA Canadian Standards Association Certified | Yes |
| UL | UL Recognized (UR) |
| Meets RoHS | Yes |
