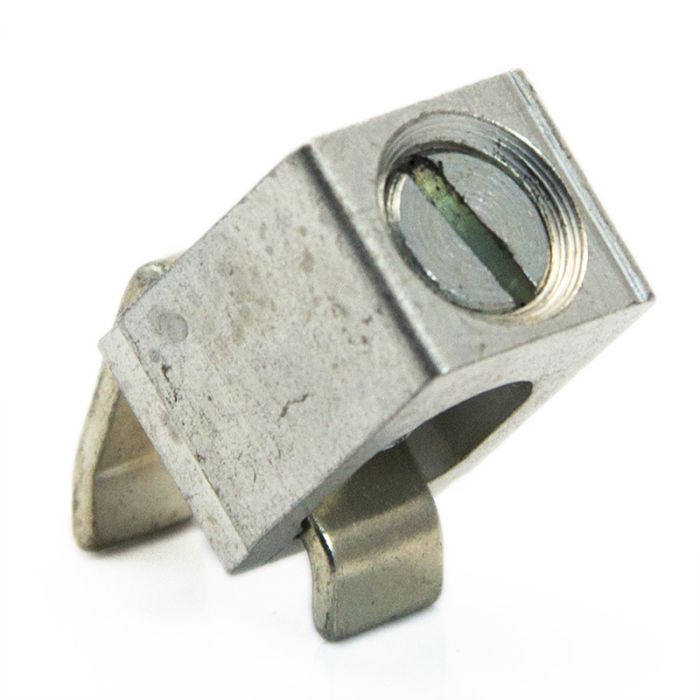

B2C-PCB-45 Solder Mounted Wire Lug for PCB's

For 2 AWG - 14 AWG Copper or Aluminum Wire

High Amp PCB Connectors, ideal for electronic power invertors, solar energy controllers, battery charger controllers, wind energy controllers, high wattage heater controllers, current controllers, power supplies, lightning arresters, and any high amperage application with up to 100 amps per connector with properly sized printed circuit board layout.

For More Information Click the Icons Below
							RoHS 9/10

Detailed Related Product Chart

Image		PART No.		WIRE RANGE	MAX. CURRENT  (copper wire)	WIRE / SCREW ACCESS	SCREW DRIVE / HEAD	SCREW MAT'L	BUS MATERIAL	MOUNT STYLE	MOUNT STYLE
		B2C-PCB-45		AWG 2 -14   METRIC (25-2.5mm2)	115A	TOP AT 45 DEGREES	SLOTTED SET SCREW	ZINC PLATED STEEL	TIN PLATED COPPER STAPLE,  SOLDERABLE	2 LEGS  .24 X .05 (6.1X1.3mm)	3 option: .09" 2.2mm .12" 3.0mm .175" 4.4mm  pentration
*Other Optional Choices: CLICK PART NUMBER FOR DIRECT LINK.                                                       *Differences from main part, highlighted in yellow....
		B2C-PCB		AWG 2 -14   METRIC (25-2.5mm2)	115A	SIDE / TOP	SLOTTED SET SCREW	ZINC PLATED STEEL	TIN PLATED COPPER STAPLE,  SOLDERABLE	2 LEGS  .24 X .05 (6.1X1.3mm)	0.14" 3.55mm penetration
		B2C-PCB-HEX		AWG 2 -14   METRIC (25-2.5mm2)	115A	SIDE / TOP	5/32” (4mm) HEX SET SCREW	ZINC PLATED STEEL	TIN PLATED COPPER STAPLE,  SOLDERABLE	2 LEGS  .24 X .05 (6.1X1.3mm)	0.14" 3.55mm penetration
		B2C-PCB-SS		AWG 2 -14   METRIC (25-2.5mm2)	115A	SIDE / TOP	SLOTTED SET SCREW	ZINC PLATED STEEL	TIN PLATED COPPER STAPLE,  SOLDERABLE	2 LEGS  .24 X .05 (6.1X1.3mm)	0.14" 3.55mm penetration
		B2C-PCB-45-HEX		AWG 2 -14   METRIC (25-2.5mm2)	115A	TOP AT 45 DEGREES	5/32” (4mm) HEX SET SCREW	ZINC PLATED STEEL	TIN PLATED COPPER STAPLE,  SOLDERABLE	2 LEGS  .24 X .05  (6.1X1.3mm)	3 option: .09" 2.2mm .12" 3.0mm .175" 4.4mm  pentration
		B2C-PCB-45-SS		AWG 2 -14   METRIC (25-2.5mm2)	115A	TOP AT 45 DEGREES	SLOTTED SET SCREW	ZINC PLATED STEEL	TIN PLATED COPPER STAPLE,  SOLDERABLE	2 LEGS  .24 X .05 (6.1X1.3mm)	3 option: .09" 2.2mm .12" 3.0mm .175" 4.4mm  pentration
