B6A-NH-PCB-RLM-12W KIT (THT)

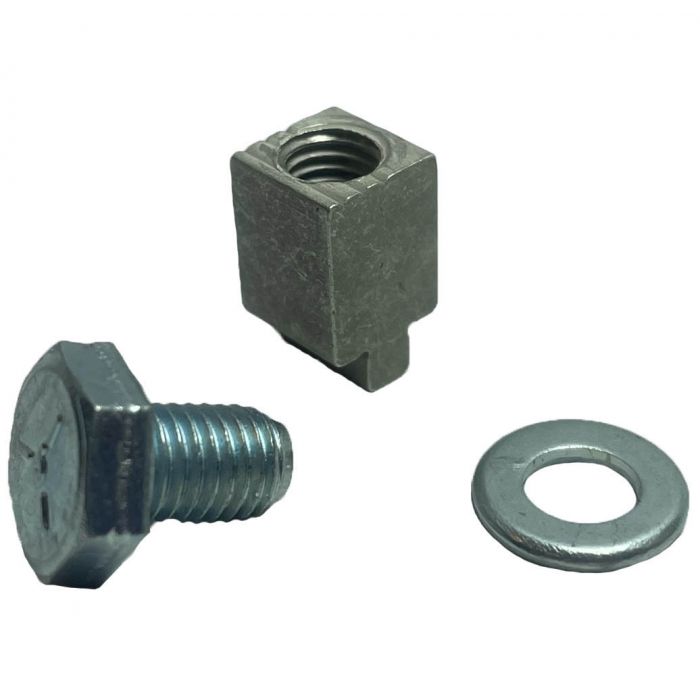

Ring lug mount block with integrated aluminum foot, tin plated, solderable. 1 leg at .336X.14” with a .13" (3.30mm) PCB penetration. Suggested ring lug wire sizes 6-14 AWG, up to 65 AMP. Kitted with a zinc plated steel 1/4-28 hex cap bolt and M6 washer.
- Buy 235 for $0.90 each and save 26%
- Buy 1500 for $0.67 each and save 45%
- Buy 3000 for $0.61 each and save 50%
Ring lug mount block with integrated aluminum foot, tin plated, solderable. 1 leg at .336X.14” with a .13" (3.30mm) PCB penetration. Suggested ring lug wire sizes 6-14 AWG, up to 65 AMP. Kitted with a zinc plated steel 1/4-28 hex cap bolt and M6 washer. Ring lug mount and top bolt entrance. Ring lug not included. When tightening bolt, two wrenches should be used to avoid damaging solder bond. Suitable for potting applications depending on mounting direction. International Hydraulics Inc® brand.
Temperature Range and Rating Guide
One piece Body THT Types
Wave and reflow solderable high current PCB wire terminal lug / connector for high amp power applications. THT (Through Hole Technology). Wire choice affected by customer supplied ring lug and ring lug codes and ratings. Solid mass, high conductivity aluminum alloy body for tens of micro ohms range of resistance wire to foil conductivity, low resistance current path. Meets IEC volt drop test standards.
| For More Information Click the Icons Below | ||||||
 |
 |
 |
 |
NO UL,UR |
NO CSA |
RoHS 10/10 |
| SKU | B6A-NH-PCB-RLM-12W-KIT-THT |
|---|---|
| Number of Wires | 1 Wire |
| Condition | New |
| AWG Wire Range | 6 - 14 AWG |
| Screw Type | Hex Cap Screw 1/4"-28 UNF & M6 Washer |
| CSA Canadian Standards Association Certified | No |
| Meets RoHS | Yes |
