B6A-NH-PCB-RLM (SMT)

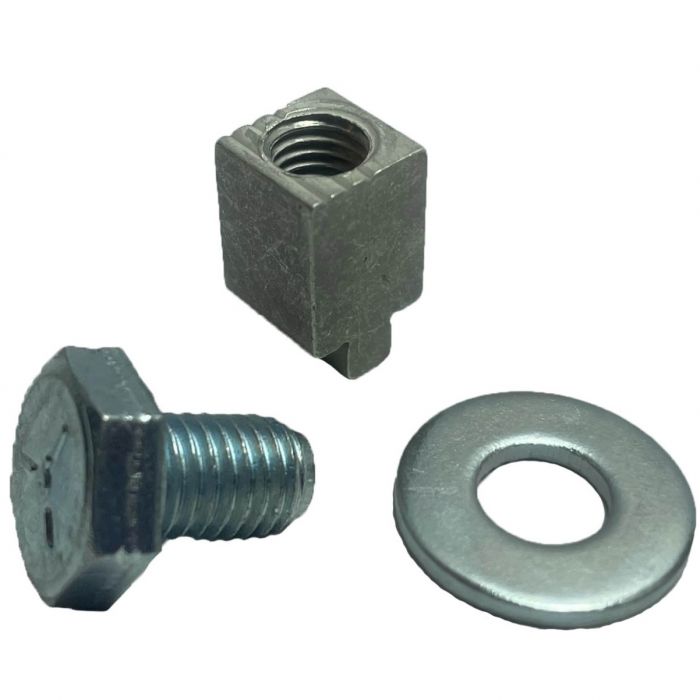

Ring lug mount block with integrated aluminum foot, tin plated, solderable. Suggested ring lug wire sizes 6-14 AWG, up to 65 AMP. Kitted with a zinc plated steel 1/4-28 hex cap bolt and 5/8" outer diameter washer. Ring lug not included.
- Buy 235 for $0.90 each and save 26%
- Buy 5000 for $0.67 each and save 45%
- Buy 10000 for $0.61 each and save 50%
Ring lug mount block with integrated aluminum foot, tin plated, solderable. Suggested ring lug wire sizes 6-14 AWG, up to 65 AMP. Kitted with a zinc plated steel 1/4-28 hex cap bolt and 5/8" outer diameter washer. Ring lug not included. SMT/SMD solderable tin plated. When tightening bolt, two wrenches should be used to avoid damaging smt bond. Suitable for potting applications depending on mounting direction. International Hydraulics Inc® brand.
Temperature Range and Rating Guide
One piece SMT / SMD Solderable Body Types
Reflow solderable high current PCB wire terminal lug / connector for high amp power applications. SMT / SMD (Surface Mount Technology, Surface Mount Device). View Soldering Temperature Profiles here. Wire choice affected by customer supplied ring lug and ring lug codes and ratings. Solid mass, high conductivity aluminum alloy body for tens of micro ohms range of resistance wire to foil conductivity, low resistance current path. Meets IEC volt drop test standards.
Soldering Recommendations, Precautions when using SMT, and SMT FAQ
| For More Information Click the Icons Below | ||||||
 |
 |
|
 |
NO UL,UR |
NO CSA |
RoHS 10/10 |
Looking for a sturdier mounting method? See the THT through hole technology function of this part: THT B6A-NH-PCB-RLM
| SKU | B6A-NH-PCB-RLM-SMT |
|---|---|
| Number of Wires | 1 Wire |
| Condition | New |
| AWG Wire Range | 6 - 14 AWG |
| Screw Type | Hex Cap Screw 1/4"-28 UNF & Washer |
| CSA Canadian Standards Association Certified | No |
| Meets RoHS | Yes |
