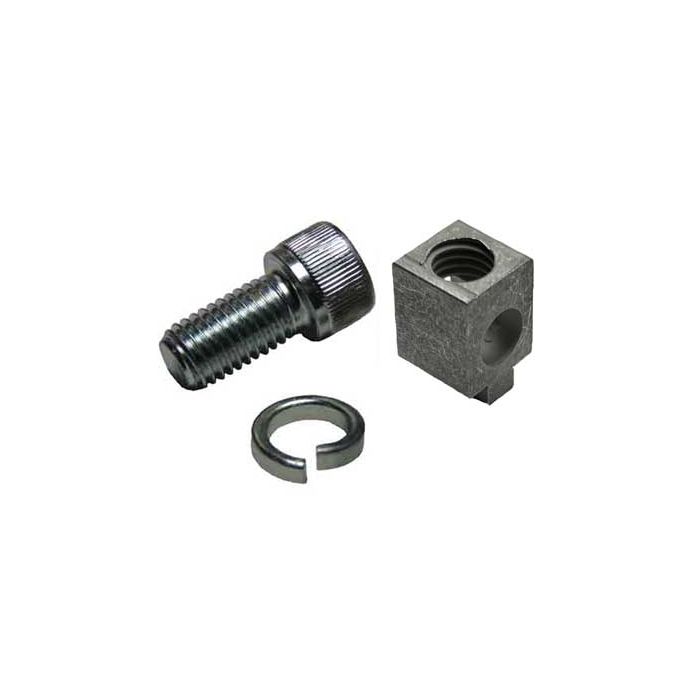

B6A-PCB-2RLM-KIT 6-16 AWG
6-16* AWG, 65 AMP, Hex Cap screw, and washer (ring lugs not included) able to fit 2 ring lug mounts. 1 leg at .336X.14” with a .10" (2.54mm) PCB penetration. Side wire, and top screw entrance.
- Buy 290 for $0.91 each and save 25%
- Buy 1500 for $0.68 each and save 44%
- Buy 3000 for $0.61 each and save 50%
B6A-PCB-2RLM (KIT): 6-16* AWG, 65 AMP, Hex Cap screw, and washer (ring lugs not included) able to fit 2 ring lug mounts. 1 leg at .336X.14” with a .10" (2.54mm) PCB penetration. Side wire, and top screw entrance.
One piece Body THT Types
Wave and reflow solderable high current PCB wire terminal lug / connector for high amp power applications. THT (Through Hole Technology). View Soldering Temperature Profiles here. Copper or aluminum wire, stranded and solid wire per UL486 wire code. Solid mass, high conductivity aluminum alloy body for tens of micro ohms range of resistance wire to foil conductivity, low resistance current path. Exceeds IEC volt drop test standards. Variety of wire binding screw options.
Precuations when using SMT and SMT FAQ
*16 AWG or fine stranded wires recommend to use wire ferrules.
Ring lugs not included.
Part not assembled.
| For More Information Click the Icons Below | |||||||
 |
 |
 |
 |
 |
NO UL,UR |
NO CSA |
RoHS 10/10 |
| SKU | B6A-PCB-2RLM-KIT |
|---|---|
| Number of Wires | 1 Wire |
| Condition | New |
| FLEX Wire Range | No FLEX Wire |
| Screw Type | Hex Cap Screw 1/4"-28 UNF & Washer |
| CSA Canadian Standards Association Certified | Yes |
| UL | UL Listed (UL) |
| Meets RoHS | Yes |
