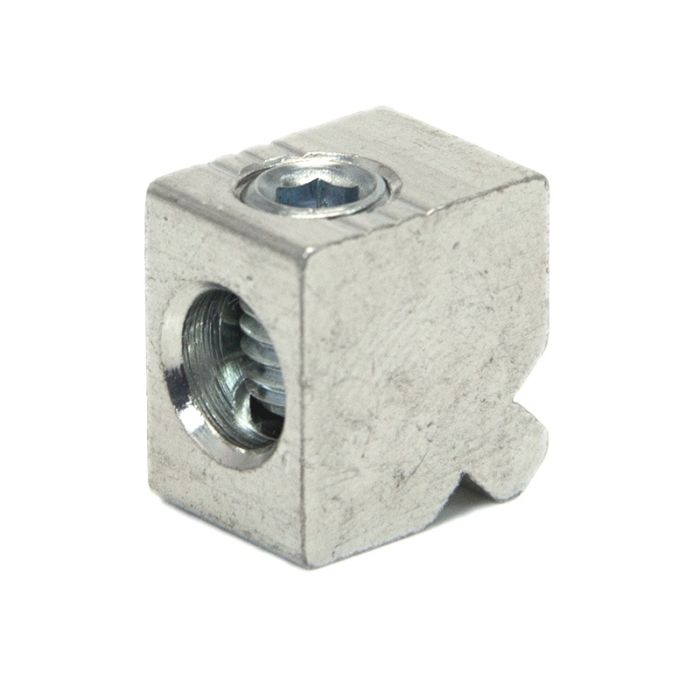

B6A-PCB-45-HEX Solder Mounted Wire Lug for PCB's
- Buy 380 for $0.77 each and save 26%
- Buy 3000 for $0.58 each and save 44%
- Buy 6000 for $0.52 each and save 50%
B6A-PCB-45-HEX: 6-18* AWG, 65 AMP, HEX Socket screw, 1 leg at .336X.14” with a .125" (3.18mm)PCB penetration. Top wire, and screw entrance at 45 degrees.
One piece Body THT Types: Wave and reflow solderable high current PCB wire terminal lug / connector for high amp power applications. THT (Through Hole Technology). View Soldering Temperature Profiles here. Copper or aluminum wire, stranded and solid wire per UL486 wire code. Solid mass, high conductivity aluminum alloy body for tens of micro ohms range of resistance wire to foil conductivity, low resistance current path. Exceeds IEC volt drop test standards. Variety of wire binding screw options. Variety of THT leg length to accommodate PCB of various thicknesses including multilayer.
Precuations when using SMT and SMT FAQ
*16 AWG, 18 AWG, or fine stranded wires recommend to use wire ferrules.
| For More Information Click the Icons Below | ||||||
 |
 |
 |
 |
NO UL,UR |
NO CSA |
RoHS 10/10 |
| SKU | B6A-PCB-45-HEX |
|---|---|
| Number of Wires | 1 Wire |
| Condition | New |
| FLEX Wire Range | No FLEX Wire |
| Screw Type | Hex Socket |
| CSA Canadian Standards Association Certified | No |
| UL | Not UL Listed or Recognized |
| Meets RoHS | Yes |
