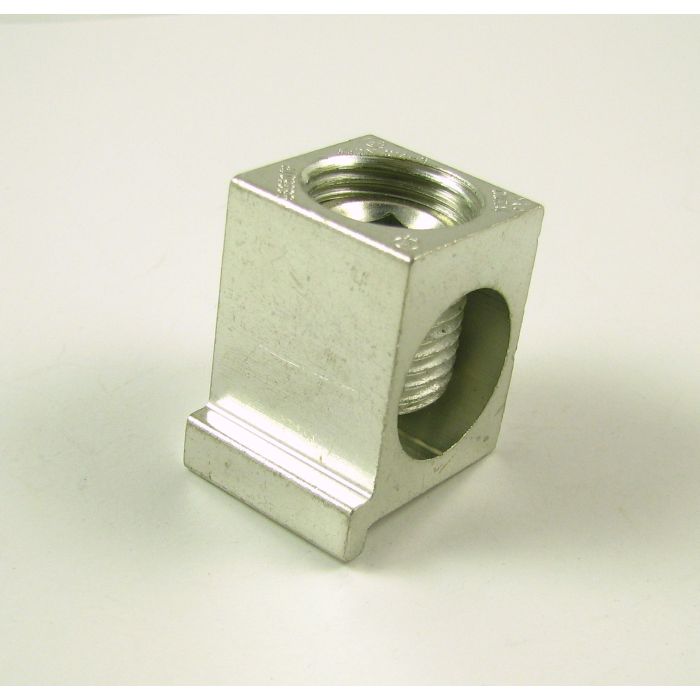

"BTP350" Single Wire Box Connectors (6 - 350kcmil AWG)
In stock
SKU
BTP350
OEM, 6 - 350kcmil AWG wire range, collar/box type connector, Turn Prevent Rib, tapped mounting hole 1/4-20, single wire.
UL Listed. Tested and Certified to UL486 USA
$3.58
- Buy 110 for $2.66 each and save 26%
- Buy 625 for $2.00 each and save 44%
"BTP350" OEM, 6 - 350kcmil AWG wire range, collar /box type connector, Turn Prevent Rib, tapped mounting hole 1/4-20, single wire, tin plated aluminum with aluminum screw, dual rated for aluminum or copper wire, CU7AL, 75C temperature rating, single mounting hole, UL Listed. Hex Socket Screw, Brumall brand.
1/4-20 threaded mounting hole for bus, tang, or Neutral Bar mounting. 0.44" from hole to bus end.
| For More Information Click the Icons Below | |||||
 |
 |
 |
 |
 |
RoHS 10/10 |
B&C Wire Size & Torque Rating
| 350kcmil-6 AWG | 375 Inch LBS. |
| 310 Amp 75C Cu Wire |
| 250 Amp 75C Al Wire |
| SKU | BTP350 |
|---|---|
| Number of Wires | 1 Wire |
| Condition | New |
| AWG Wire Range | 350 kcmil - 6 AWG |
| FLEX Wire Range | No FLEX Wire |
| Screw Type | Hex Socket |
| CSA Canadian Standards Association Certified | No |
| UL | UL Recognized (UR) |
| Meets RoHS | Yes |
