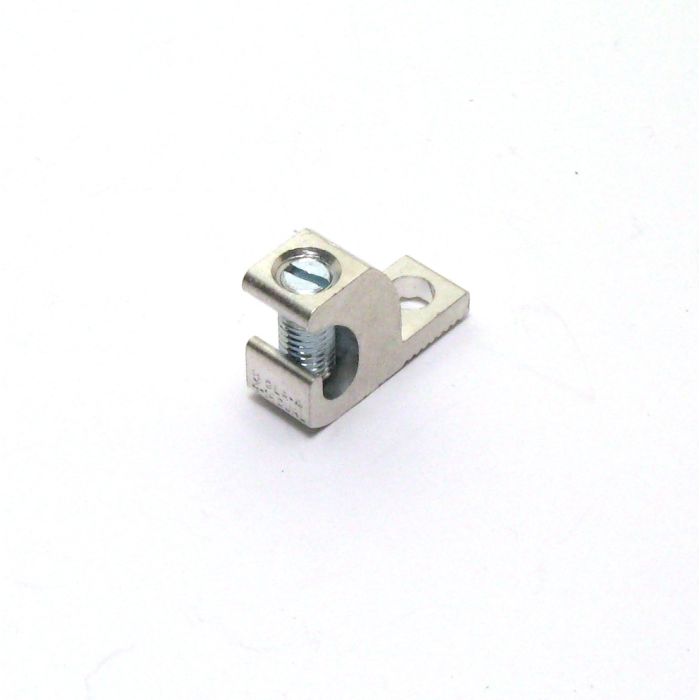

"GLA-4" Single Wire Grounding Lug (14 - 4 AWG)
In stock
SKU
GLA-4
GLA-4 14 - 4 AWG wire range, LAY IN type GROUNDING LUG, 3/8" wide, aluminum or copper wire, tin plated aluminum body, plated steel screw, CUAL, grounding use only (not power use), one mounting hole, .21 dia. for #10 bolt, serrations on mounting surface to resist lug rotation, UL Recognized ZMVV2. BMC brand. Made in the USA from domestic and imported parts..
UL Recognized. Not CSA Certified.
Made in the USA from domestic and imported parts.
NOTE: "UR" IS NOT STAMPED ON PART DUE TO
LIMITED SPACE BUT UR CERT. IS VIEWABLE ONLINE. See table with more information below
$0.72
- Buy 500 for $0.53 each and save 26%
- Buy 1800 for $0.40 each and save 44%
"GLA-4" 14 - 4 AWG wire range, LAY IN type GROUNDING LUG, 3/8" wide, aluminum or copper wire, tin plated aluminum body, plated steel screw, CUAL, grounding use or power use, ZMVV2 (UL Recognized); The final acceptance of the component is dependent upon its installation and use in complete equipment submitted to UL. one mounting hole, .218 dia. for #10 bolt, serrations on mounting surface to resist lug rotation, UL Recognized ZMVV2. BMC brand.
Convenient inspection window to visually inspect full conductor insertion
Made with 6061-T6 aluminum to provide maximum electrical contact and performance
Electro tin-plated, to protect against corrosion
Plated aluminum screw provides durable long lasting contact between the conductor and connector
Electro tin-plated, to protect against corrosion
Plated aluminum screw provides durable long lasting contact between the conductor and connector
| For More Information Click the Icons Below | ||||
 |
 |
 |
NO CSA |
RoHS 10/10 |
| 4 AWG | 45 IN. LBS. |
| 8 AWG | 40 IN. LBS. |
| 10-14 AWG | 35 IN. LBS. |
|
NOTE: "UR" IS NOT STAMPED ON PART DUE TO LIMITED SPACE
BUT UR CERT IS VIEWABLE ON LINE AT UL
|
|
| SKU | GLA-4 |
|---|---|
| Number of Wires | 1 Wire |
| Condition | New |
| AWG Wire Range | 4 - 14 AWG |
| FLEX Wire Range | No FLEX Wire |
| Screw Type | Slotted Screw |
| CSA Canadian Standards Association Certified | No |
| UL | UL Recognized (UR) |
| Meets RoHS | Yes |
| Cross Reference Part Numbers: | Ilsco GBL-4 CMC LI50-S T&B Blackburn LL414 FCI Burndy BGBL-4 NSI GLA-4 |
