"S6" Single Wire Lugs (14-6 AWG)
In stock
SKU
S6

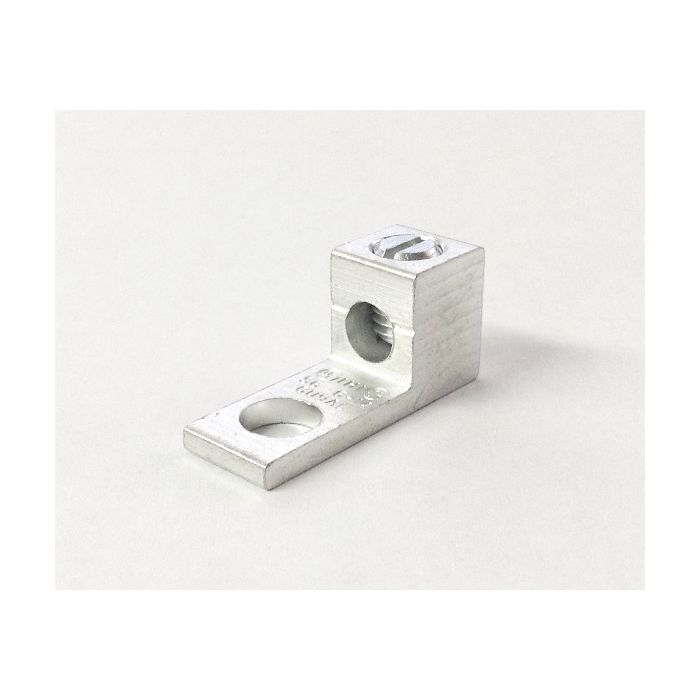

One barrel tin plated aluminum wire lug for use with 14-6 AWG wire. This single barrel lug can be used with aluminum or copper wire.
UL Listed, CSA Certified.
Made in the USA from domestic and imported parts
$0.65
- Buy 900 for $0.48 each and save 26%
- Buy 3000 for $0.36 each and save 45%
"S6" 14-6 AWG wire range , 3/8" wide, 1 barrel, aluminum or copper wire, CU9AL, 90C temperature rating, one mounting hole , UL Listed, CSA Certified. 1/4" dia. mounting bolt hole. IHI brand.
Convenient inspection window to visually inspect full conductor insertion.
Made with 6061-T6 aluminum to provide maximum electrical contact and performance.
Electro tin-plated, to warrant against corrosion.
Dual rated for both aluminum and copper.
Plated aluminum or steel screw provides durable long lasting contact between the conductor and connector
Single Wire Lugs are also know as electrical cable lugs.
Made with 6061-T6 aluminum to provide maximum electrical contact and performance.
Electro tin-plated, to warrant against corrosion.
Dual rated for both aluminum and copper.
Plated aluminum or steel screw provides durable long lasting contact between the conductor and connector
Single Wire Lugs are also know as electrical cable lugs.
 |
| For More Information Click the Icons Below | ||||||
 |
 |
 |
 |
 |
 |
RoHS 9/10 |
B&C Wire Size & Torque Rating
|
6 AWG
|
45 IN LBS.
|
|
8 AWG
|
40 IN LBS.
|
|
10-14 AWG
|
35 IN LBS.
|
|
65 Amp 75C Cu Wire
|
|
75 Amp 90C Cu Wire
|
|
50 Amp 75C Al Wire
|
|
60 Amp 90C Al Wire
|
| SKU | S6 |
|---|---|
| Number of Wires | 1 Wire |
| Condition | New |
| AWG Wire Range | 6 - 14 AWG |
| FLEX Wire Range | No FLEX Wire |
| Screw Type | Slotted Screw |
| CSA Canadian Standards Association Certified | Yes |
| UL | UL Listed (UL) |
| Meets RoHS | Yes |
| Cross Reference Part Numbers: | A50-1, A-35,1863, 87-002 (LA-6A) |
