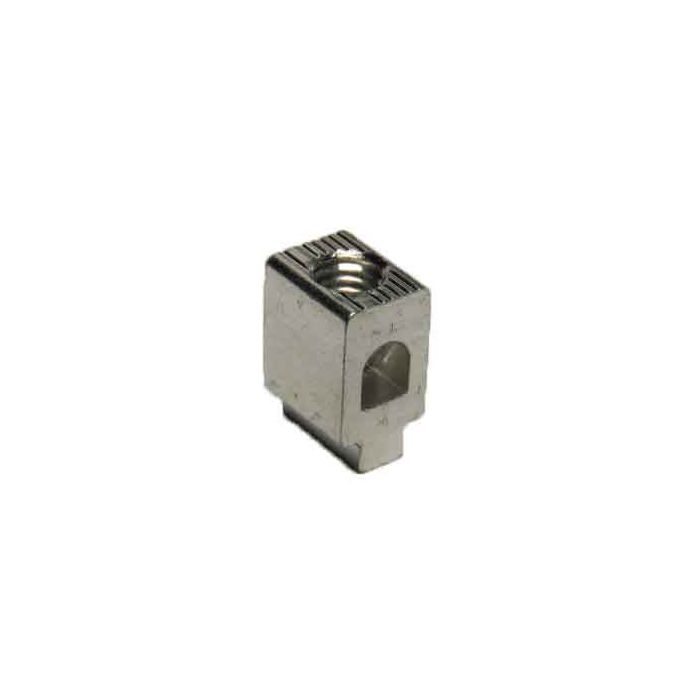

"B10-PCB-NS" Solder Mounted Wire Lug for PCBs
10 AWG, 30 AMP,10-16* AWG wire range. Side wire entrance, no screw. integrated aluminum foot, tin plated bus.
- Buy 735 for $0.41 each and save 25%
- Buy 2000 for $0.30 each and save 45%
- Buy 4000 for $0.27 each and save 51%
B10-PCB-NS: 10 AWG, 30 AMP,10-16* AWG wire range. Sold less the wire binding screws so clients can provide their own #10-32 screw. 1 leg with a .336X.14” penetration. Side wire entrance, no screw. integrated aluminum foot, tin plated bus. One piece Body THT Types Wave and reflow solderable high current PCB wire terminal lug / connector for high amp power applications. THT (Through Hole Technology). View Soldering Temperature Profiles here. Copper or aluminum wire, stranded and solid wire per UL486 wire code. Solid mass, high conductivity aluminum alloy body for tens of micro ohms range of resistance wire to foil conductivity, low resistance current path. Exceeds IEC volt drop test standards. Variety of wire binding screw options. One piece SMT / SMD Solderable Body Types Wave and reflow solderable high current PCB wire terminal lug / connector for high amp power applications. SMT / SMD (Surface Mount Technology, Surface Mount Device). Copper or aluminum wire, stranded and solid wire per UL486 wire code. Solid mass, high conductivity aluminum alloy body for tens of micro ohms range of resistance wire to foil conductivity, low resistance current path. Exceeds IEC volt drop test standards. Variety of wire binding screw options.
Precuations when using SMT and SMT FAQ
| For More Information Click the Icons Below | ||||||
 |
 |
 |
 |
NO UL,UR |
NO CSA |
RoHS 10/10 |
| SKU | B10-PCB-NS |
|---|---|
| Number of Wires | 1 Wire |
| Condition | New |
| AWG Wire Range | 10-16 AWG |
| FLEX Wire Range | No FLEX Wire |
| Screw Type | No Screw |
| CSA Canadian Standards Association Certified | No |
| UL | Not UL Listed or Recognized |
| Meets RoHS | Yes |
