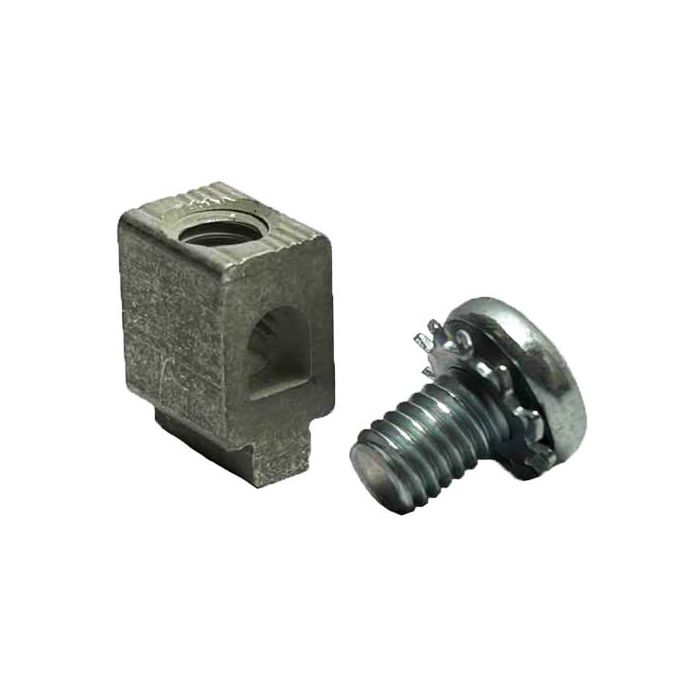

B10-PCB-RLM-KIT Solder Mounted Wire Lug for PCB's
- Buy 435 for $0.65 each and save 26%
- Buy 3000 for $0.49 each and save 44%
- Buy 6000 for $0.44 each and save 50%
10 AWG PCB wire lug, 10-16* AWG, 30 AMP, ring lug mount with phillips screw and washer. 1 leg at .336X.14” with a .10"(2.54mm) PCB penetration. Side wire, and top screw entrance.
One piece SMT / SMD Solderable Body Types
Wave and reflow solderable high current PCB wire terminal lug / connector for high amp power applications. SMT / SMD (Surface Mount Technology, Surface Mount Device). View Soldering Temperature Profiles here. Copper or aluminum wire, stranded and solid wire per UL486 wire code. Solid mass, high conductivity aluminum alloy body for tens of micro ohms range of resistance wire to foil conductivity, low resistance current path. Exceeds IEC volt drop test standards. Variety of wire binding screw options.
| For More Information Click the Icons Below | |||||||
 |
 |
 |
 |
 |
NO UL,UR |
NO CSA |
RoHS 10/10 |
Detailed Related Product Chart
| Image | PART No. |
WIRE
RANGE
|
MAX.
CURRENT
(copper wire)
|
WIRE /
SCREW
ACCESS
|
SCREW
DRIVE /
HEAD
|
SCREW
MAT'L
|
BUS
MATERIAL
|
MOUNT
STYLE
|
MOUNT | ||||||||||
|
*Ring Lug
Not Included
-customer supplied
|
RING LUG MOUNT
#10 (5mm) HOLE SIZE OF CUSTOMER
SUPPLIED RING LUGS
|
AWG
10-16
METRIC
(4-1.5mm2) |
30A |
TOP/
TOP
|
PHILIPS
HEAD
|
ZINC PLATED STEEL |
INTEGRATED
ALUMINUM FOOT,TIN PLATED, SOLDERABLE
|
.336X.14”
(8.5X3.5mm)
1 LEG |
0.10"
2.54mm
penetration
|
||||||||||
|
*Other Optional Choices: CLICK PART NUMBER FOR DIRECT LINK.
*Differences from main part, highlighted in yellow....
|
|||||||||||||||||||
|
*Ring Lug
Not Included
-customer supplied
|
(RING LUG MOUNT)
1/4" (6mm) BOLT
HOLE RING LUGS
|
AWG 4-18
METRIC
(16-1.5mm2)
|
85A
|
TOP AT 45 DEGREES
|
HEX CAP
SCREW
1/4"-28 UNF
& WASHER
|
ZINC PLATED STEEL
|
INTEGRATED
ALUMINUM FOOT,TIN PLATED, SOLDERABLE
|
.375X .14”
(9.5X3.5mm) 1 LEG |
0.125"
3.18mm
penetration
|
||||||||||
|
*Ring Lug
Not Included -
customer supplied
|
(RING LUG MOUNT)
|
AWG
6-18
METRIC
(16 -1.5mm2) |
65A | TOP / TOP |
HEX CAP
SCREW
1/4"-28 UNF
& WASHER
|
ZINC PLATED STEEL |
INTEGRATED
ALUMINUM FOOT, TIN PLATED, SOLDERABLE
|
.336X.14”
(8.5X3.5mm)
1 LEG |
0.10"
2.54mm
penetration
|
||||||||||
.JPG)
.JPG)
| SKU | B10-PCB-RLM-KIT |
|---|---|
| Number of Wires | 1 Wire |
| Condition | New |
| AWG Wire Range | 10-16 AWG |
| FLEX Wire Range | No FLEX Wire |
| Screw Type | Phillips Head |
| CSA Canadian Standards Association Certified | No |
| UL | Not UL Listed or Recognized |
| Meets RoHS | Yes |
