B12-PCB-NM-HEX
In stock
SKU
B12-PCB-NM-HEX

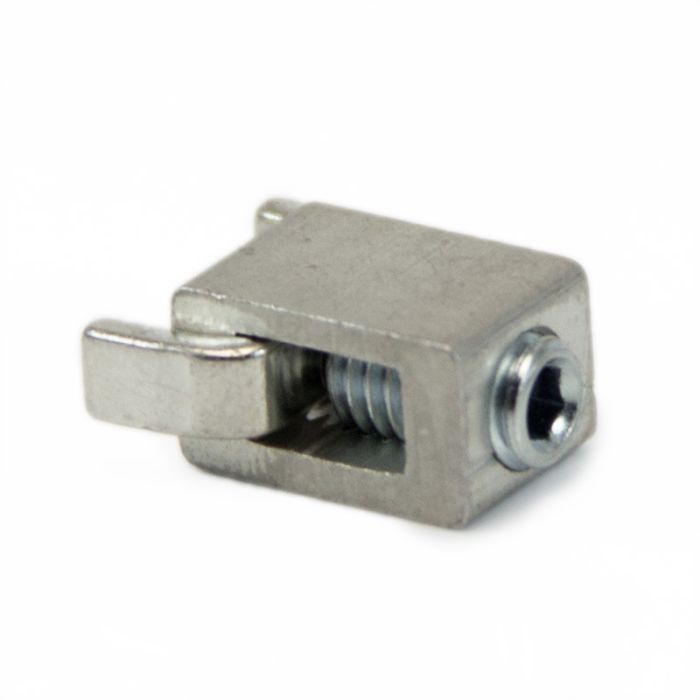

B12-PCB-NM-HEX: 16 - 10 AWG, 20 AMP, Hex socket screw. 2 LEGS at .14X.063” cross section and 0.12” (3.0mm) penetration PCB penetration. Side wire, and top screw entrance. No markings on body.
$0.80
- Buy 495 for $0.59 each and save 26%
- Buy 4500 for $0.45 each and save 44%
- Buy 9000 for $0.40 each and save 50%
B12-PCB-NM-HEX: 16 - 10 AWG, 20 AMP, Hex socket screw. 2 LEGS at .14X.063” cross section and 0.12” (3.0mm) penetration PCB penetration. Side wire, and top screw entrance. No markings on body. Body and Staple THT Types Wave and reflow solderable high current PCB wire terminal lug / connector for high amp power applications. THT (Through Hole Technology). Copper wire, stranded and solid wire per UL486 wire code. Solid copper bus staple for tens of micro ohms range of copper to copper high conductivity, low resistance current path. Exceeds IEC volt drop test standards.
| For More Information Click the Icons Below | ||||||
 |
 |
 |
 |
NO UL, UR |
NO CSA |
RoHS 10/10 |
| SKU | B12-PCB-NM-HEX |
|---|---|
| Number of Wires | 1 Wire |
| Condition | New |
| AWG Wire Range | 10-16 AWG |
| FLEX Wire Range | No FLEX Wire |
| Screw Type | Hex Socket |
| CSA Canadian Standards Association Certified | Yes |
| UL | Not UL Listed or Recognized |
| Meets RoHS | Yes |
