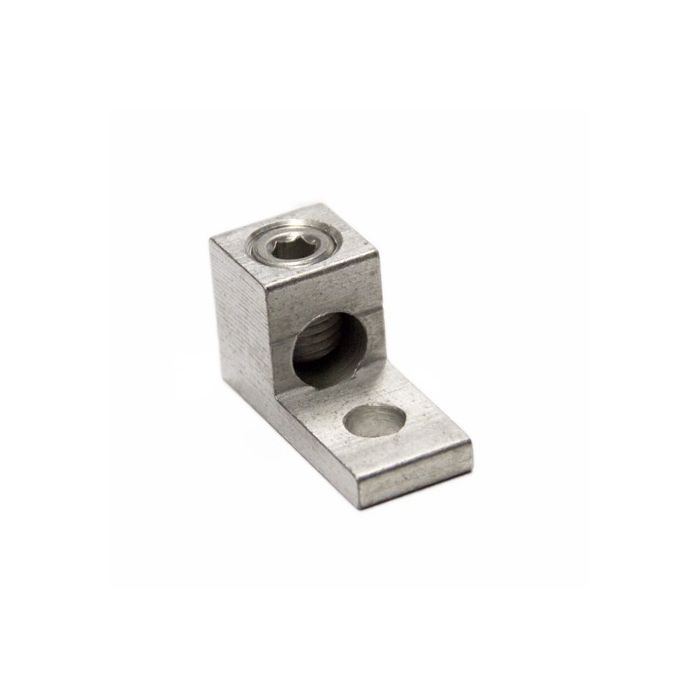

"S2/0-HEX-M" Single Wire Lugs (2/0-14 AWG) & FLEX Wire (1 - 8 AWG)
In stock
SKU
S2/0-HEX-M
$1.35
- Buy 277 for $1.00 each and save 26%
- Buy 1000 for $0.75 each and save 44%
"S2/0-HEX-M" 2/0-14 AWG wire range, and FLEX wire, 1/0-14 AWG, class G-K including mm2 class 5, 1 barrel, aluminum or copper wire, CU9AL, 90C temperature rating, one mounting hole, METRIC 5mm Hex Socket screw, UL Listed, CSA Certified. 1/4" or 6mm bolt mounting hole. IHI brand.
Use of Ferrules (UL Listed) on 1/0-14 AWG
- Convenient inspection window to visually inspect full conductor insertion
- Made with 6061-T6 aluminum to provide maximum electrical contact and performance
- Electro tin-plated, to warrant against corrosion
- Plated aluminum or steel screw provides durable long lasting contact between the conductor and connector
 |
| For More Information Click the Icons Below | ||||||
 |
 |
 |
 |
 |
|
RoHS 10/10 |
| 2/0-3 AWG |
50 IN LBS.
|
|
4-6 AWG
|
45 IN LBS.
|
|
8 AWG
|
40 IN LBS.
|
|
10-14 AWG
|
35 IN LBS.
|
|
1/0-1 AWG
|
75 IN LBS.
|
|
1-4 AWG
|
55 IN LBS.
|
|
4-8 AWG
|
50 IN LBS.
|
|
8-10 AWG
|
45 IN LBS.
|
|
10-14 AWG
|
40 IN LBS.
|
|
175 Amp 75C Cu Wire
|
|
195 Amp 90C Cu Wire
|
|
135 Amp 75C Al Wire
|
|
150 Amp 90C Al Wire
|
| SKU | S2/0-HEX-M |
|---|---|
| Number of Wires | 1 Wire |
| Condition | New |
| AWG Wire Range | 2/0 - 14 AWG |
| FLEX Wire Range | 1/0-14 AWG |
| Screw Type | Metric Hex Socket |
| CSA Canadian Standards Association Certified | Yes |
| Meets RoHS | Yes |
