"S2-HEX" Single Wire Lugs (14-2 AWG)
In stock
SKU
S2-HEX

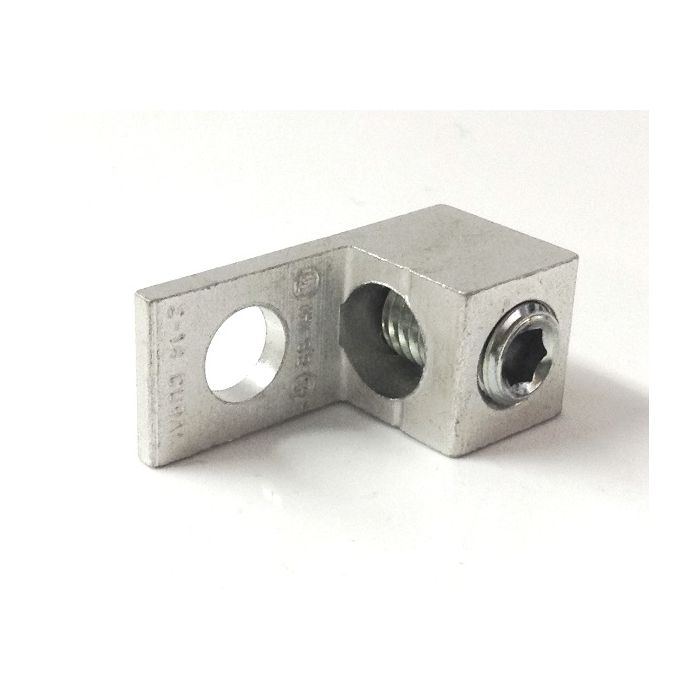

Single wire lugs, 14-2 AWG wire range, universal Hex socket wire screw 4mm & 5/32" across flats key.
UL Listed, CSA Certified.
IHI Brand. Made in the USA from domestic and imported parts.
$0.88
- Buy 770 for $0.65 each and save 26%
- Buy 2000 for $0.49 each and save 44%
"S2-HEX" 14-2 AWG wire range , 1 barrel, aluminum or copper wire, CU9AL, 90C temperature rating, universal Hex socket wire screw 4mm & 5/32" across flats key. UL Listed, CSA Certified. One 1/4" bolt (6mm) mounting bolt hole. IHI brand.
 |
| For More Information Click the Icons Below | ||||||
 |
 |
 |
 |
 |
|
RoHS 10/10 |
| 2-4 AWG | 50 Inch LBS. |
| 6-10 AWG | 40 Inch LBS. |
| 12-14 AWG | 15 Inch LBS. |
| 115 Amp 75C Cu Wire |
| 130 Amp 90C Cu Wire |
| 90 Amp 75C Al Wire |
| 100 Amp 90C Al Wire |
| SKU | S2-HEX |
|---|---|
| Number of Wires | 1 Wire |
| Condition | New |
| AWG Wire Range | 2 - 14 AWG |
| FLEX Wire Range | 4-12 AWG |
| Screw Type | Hex Socket |
| CSA Canadian Standards Association Certified | Yes |
| UL | UL Listed (UL) |
| Meets RoHS | Yes |
