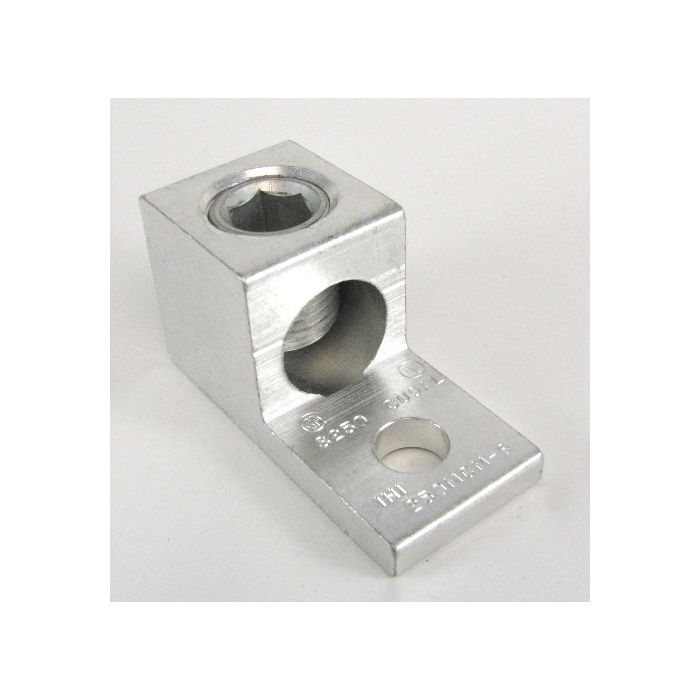

"S250" Single Wire Lugs (250 kcmil (4/0 AWG)-6 AWG)
In stock
SKU
S250
One barrel tin plated aluminum metric wire lug for use with 250 kcmil (4/0 AWG)-6 AWG wire. This single barrel lug can be used with aluminum or copper wire. Convenient 5/16" mounting hole for easy lug installation, NEMA mounting holes and spacing; this is not a NEMA tested part,
UL & CSA Approved for
Multiple wires class B, C, 2X AWG 2-6 &2X 25-16 mm2
& FLEX wire Classes G-K sizes 3/0-6 AWG
& FLEX wire Classes G-K sizes 3/0-6 AWG
$2.92
- Buy 130 for $2.17 each and save 26%
- Buy 375 for $1.63 each and save 44%
"S250" 250 kcmil (4/0 AWG)-6 AWG AWG wire range, Multiple (dual) class B/C and FLEX wire, 3/0-6 AWG, class G-K including mm2 class 5, 1 barrel, aluminum or copper wire, CU9AL, 90C temperature rating, one mounting hole, NEMA mounting holes and spacing; this is not a NEMA tested part, UL Listed, CSA Certified. 5/16" mounting bolt hole. IHI brand.
Use of Ferrules (UL Listed) on 3/0-6 AWG
- Convenient inspection window to visually inspect full conductor insertion
- Made with 6061-T6 aluminum to provide maximum electrical contact and performance
- Electro tin-plated, to warrant against corrosion
- Plated aluminum or steel screw provides durable long lasting contact between the conductor and connector
 |
| For More Information Click the Icons Below | ||||||
 |
 |
 |
 |
 |
|
RoHS 10/10 |
| 250-1kcmil | 375 IN. LBS. |
| 2-6 AWG | 275 IN. LBS. |
|
3/0-1 AWG |
375 IN. LBS. |
| 2-6 AWG | 275 IN. LBS. |
| 255 Amp 75C Cu Wire |
| 290 Amp 90C Cu Wire |
| 205 Amp 75C Al Wire |
| 230 Amp 90C Al Wire |
| SKU | S250 |
|---|---|
| Number of Wires | 1 Wire |
| Condition | New |
| AWG Wire Range | 250 kcmil - 6 AWG |
| FLEX Wire Range | 3/0-6 AWG |
| Screw Type | Hex Socket |
| CSA Canadian Standards Association Certified | Yes |
| UL | UL Listed (UL) |
| Meets RoHS | Yes |
