"S300-PCB-KIT" 300kcmil-6 AWG
S300-PCB-KIT: 300kcmil-6 AWG, 320A AMP, HEX socket screws, with Hex cap screw, and washer. 2 legs at 4pcs staples. UL listed. CSA Certified. Made in the USA.
- Buy 40 for $7.37 each and save 26%
- Buy 167 for $5.53 each and save 44%
- Buy 334 for $4.97 each and save 50%
S300-PCB-KIT: 300kcmil-6 AWG, 320A AMP, HEX socket screws, with Hex cap screw, and washer. 2 legs at 4pcs staples, at .25x.05” with a 0.125" (3.18mm) PCB penetration. Side wire, and top screw entrance.

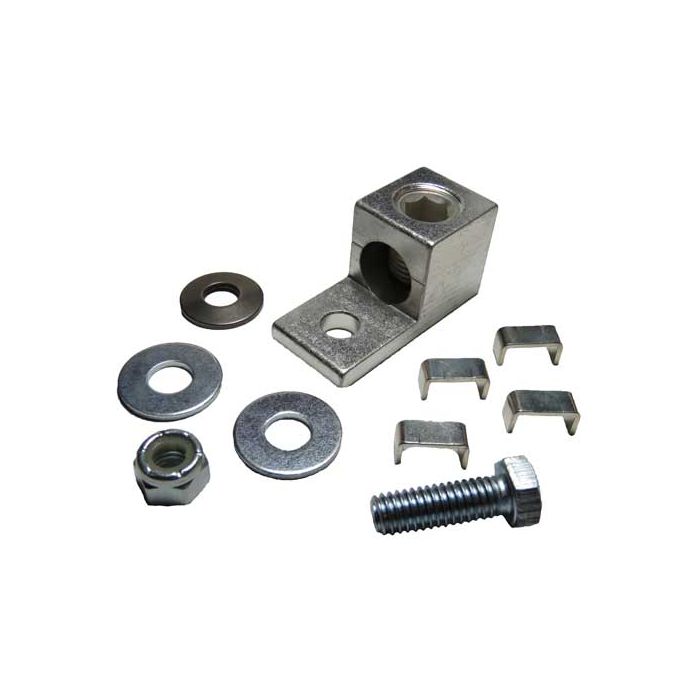

Kit includes: one 5/16" Machine Screw with 1" long thread, one Nyloc nut, one stainless belleville washer, two flat washers, and four (14257) copper solderable bus staples.
One piece THT / SMD Bellville Controlled Contact Force Types
(with and without Via Bus Current Shunt Staples and Anti-Rotation Stops)
Bolt Through PCB wire terminal lug / connector for high amp power applications. SMT / SMD “Solder Free” Surface Contact Technology used with long life PPE contact lubricant. Copper or aluminum wire, stranded and solid wire per UL486 wire code and flex wire classes G, H , I DLO and K. Solid mass, high conductivity tin and copper plated aluminum alloy body for tens of micro ohms resistance range of wire to foil conductivity, low resistance current path. Exceeds IEC volt drop test standards. Variety of wire binding screw options. Can accommodate any PCB thickness including multilayer. Wire entry parallel to PCB plane.
| For More Information Click the Icons Below | ||||||||
 |
 |
 |
%20cat.only.jpg "Agency Label"){kind=small} |
 |
 |
|
RoHS 10/10 |
 |
| SKU | S300-PCB |
|---|---|
| Number of Wires | 1 Wire |
| Condition | New |
| AWG Wire Range | 300 kcmil - 6 AWG |
| FLEX Wire Range | 4/0-6 AWG |
| Screw Type | Hex Socket |
| CSA Canadian Standards Association Certified | Yes |
| UL | UL Listed (UL) |
| Meets RoHS | Yes |
