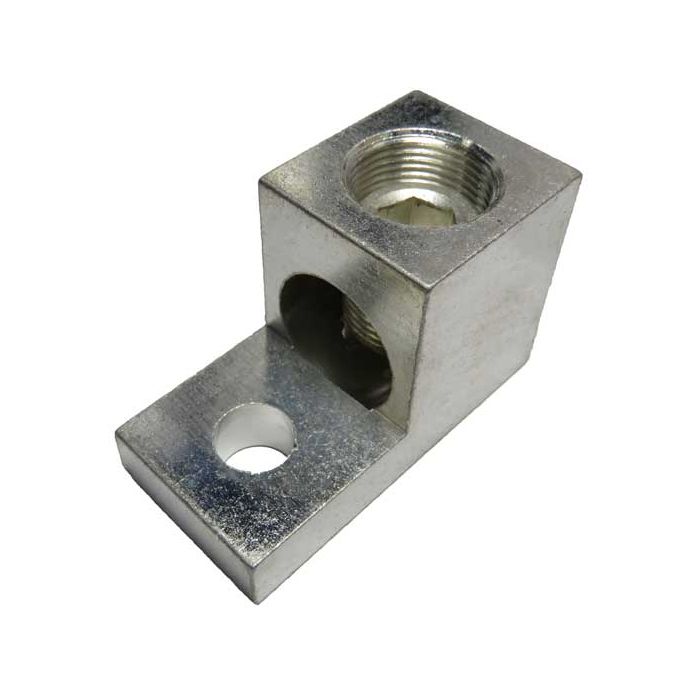

S750-53-63 Single Wire Single Barrel Mechanical Lug 750kcmil-1/0 AWG
In stock
SKU
S750-53-63
$15.89
- Buy 35 for $11.81 each and save 26%
- Buy 100 for $8.86 each and save 44%
Single wire lug, 750 kcmil-1/0 AWG wire range, single barrel, aluminum or copper wire, CU9AL, 90C temperature rating, one 1/2" bolt mounting hole, UL Listed at 600v - acceptable for use through 2000v, Canada Certified. Stacking, nesting, and interlocking lugs permitted under UL White book ZMVV. Current and temperature rating subject to the lowest temperature rated conducting part in the assembly. International Hydraulics Inc® brand.
 |
| For More Information Click the Icons Below | |||||
 |
 |
 |
 |
 |
RoHS 10/10 |
| SKU | S750-53-63 |
|---|---|
| Category No. | 2S750 |
| Number of Wires | 1 Wire |
| Condition | New |
| AWG Wire Range | 750 kcmil-1/0 AWG |
| FLEX Wire Range | No FLEX Wire |
| Screw Type | Hex Socket |
| CSA Canadian Standards Association Certified | Yes |
| UL | UL Listed (UL) |
| Meets RoHS | Yes |
