"S600-41-63" Single Wire Lugs (4 - 600 kcmil AWG) & FLEX Wire (2 AWG - 444 kcmil)
In stock
SKU
S600-41-63

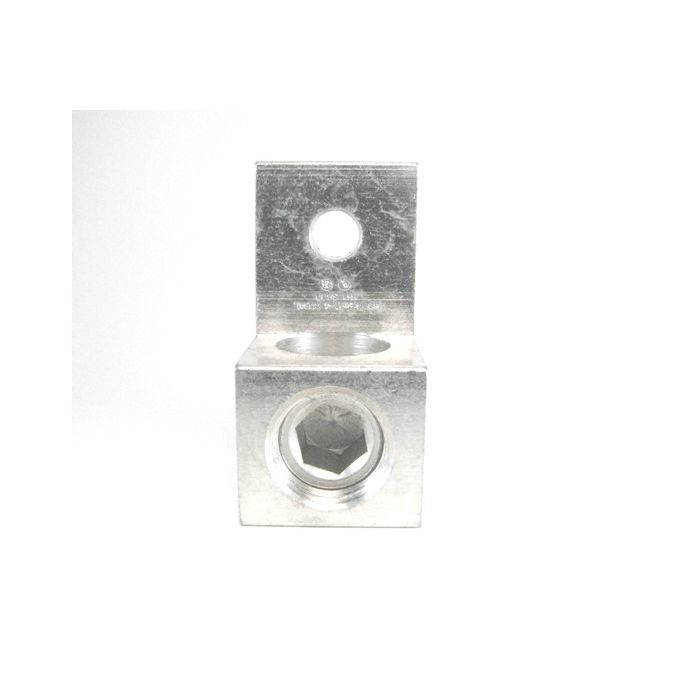

One barrel tin plated aluminum metric wire lug for use with 4 - 600 kcmil AWG wire. This single barrel lug can be used with aluminum or copper wire. Convenient mounting hole for a 3/8" bolt for easy lug installation. NEMA mounting holes and spacing; this is not a NEMA tested part.
UL Listed, CSA Certified.
UL & CSA Approved for FLEX wire
Class G-K sizes #2 AWG-#444 kcmil
$6.80
- Buy 50 for $5.05 each and save 26%
- Buy 150 for $3.65 each and save 46%
"S600-41-63" 4 - 600 kcmil AWG wire range, and FLEX wire class G-K including mm2 class 5, 1 barrel, aluminum or copper wire, CU9AL, 90C temperature rating, one 3/8" bolt mounting hole, NEMA mounting holes and spacing; this is not a NEMA tested part, UL Listed, CSA Certified. IHI brand.
Use of Ferrules (UL Listed) on 444 kcmil-2 AWG
Convenient inspection window to visually inspect full conductor insertion
Made with 6061-T6 aluminum to provide maximum electrical contact and performance
Electro tin-plated, to warrant against corrosion
Plated aluminum or steel screw provides durable long lasting contact between the conductor and connector
 |
| For More Information Click the Icons Below | ||||||
 |
 |
 |
 |
 |
|
RoHS 10/10 |
B&C Wire Size & Torque Rating
|
600kcmil-4 AWG
|
500 IN LBS.
|
Class G-K Flex Wire Size & Torque Rating
|
444kcmil-2 AWG
|
500 IN LBS.
|
| 420 Amp 75C Cu Wire |
|
475 Amp 90C Cu Wire
|
|
340 Amp 75C Al Wire
|
|
385 Amp 90C Al Wire
|
| SKU | S600-41-63 |
|---|---|
| Number of Wires | 1 Wire |
| Condition | New |
| AWG Wire Range | 600 kcmil - 4 AWG |
| FLEX Wire Range | 444 kcmil-2 AWG |
| Screw Type | Hex Socket |
| CSA Canadian Standards Association Certified | Yes |
| UL | UL Listed (UL) |
| Meets RoHS | Yes |
