"P2/0" Splicer Wire Lugs (2/0-8 AWG)
In stock
SKU
P2/0

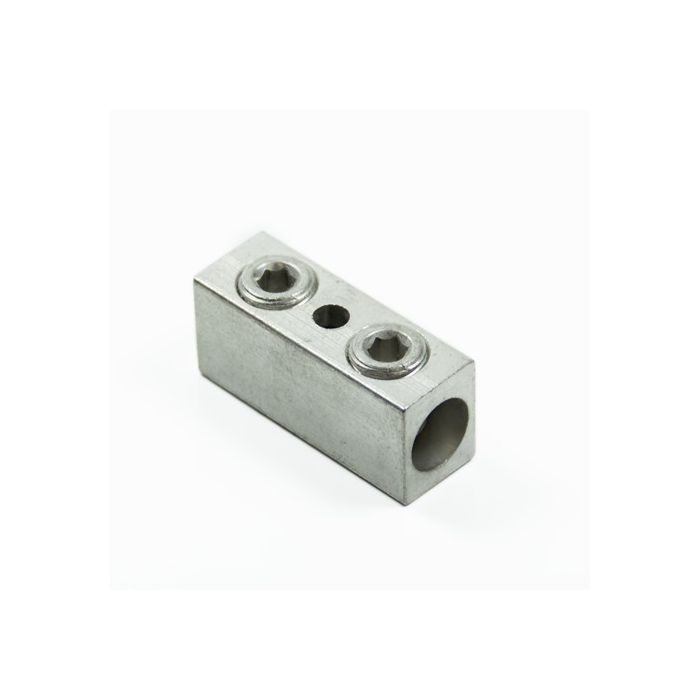

Splicer Wire tin plated aluminum wire lugs for use with 2/0-8 AWG wire. This splicer lug can be used with aluminum or copper wire. These lugs can also be used as a reducer or splitter.
UL Listed
Made in the USA from domestic and imported parts.
$3.03
- Buy 130 for $2.25 each and save 26%
- Buy 700 for $1.69 each and save 44%
"P2/0" 2/0-8 AWG wire range, aluminum or copper wire, splicer or reducer CU7AL, 75C temperature rating, single #10 bolt clearance mounting hole, or wire insertion "sight" hole or wire stop hole, UL Listed. Hex socket screws. IHI Brand. Made in the USA.
____________________________________________________________________________
Convenient inspection window to visually inspect full conductor insertion
Made with 6061-T6 aluminum to provide maximum electrical contact and performance
Electro tin-plated, to warrant against corrosion
Plated aluminum or steel screw provides durable long lasting contact between the conductor and connector
For splicing two copper or aluminum wire of equal or different sizes
Made with 6061-T6 aluminum to provide maximum electrical contact and performance
Electro tin-plated, to warrant against corrosion
Plated aluminum or steel screw provides durable long lasting contact between the conductor and connector
For splicing two copper or aluminum wire of equal or different sizes
Wire Size to Torque Rating:
2/0 - 8 AWG - 120 Inch LBS.
 |
| For More Information Click the Icons Below | ||||||
 |
 |
 |
 |
NO CSA |
|
RoHS 10/10 |
| SKU | P2/0 |
|---|---|
| Number of Wires | 2 Wires |
| Condition | New |
| AWG Wire Range | 2/0 - 8 AWG |
| FLEX Wire Range | 1/0-14 AWG |
| Screw Type | Hex Socket |
| CSA Canadian Standards Association Certified | No |
| UL | UL Listed (UL) |
| Meets RoHS | Yes |
