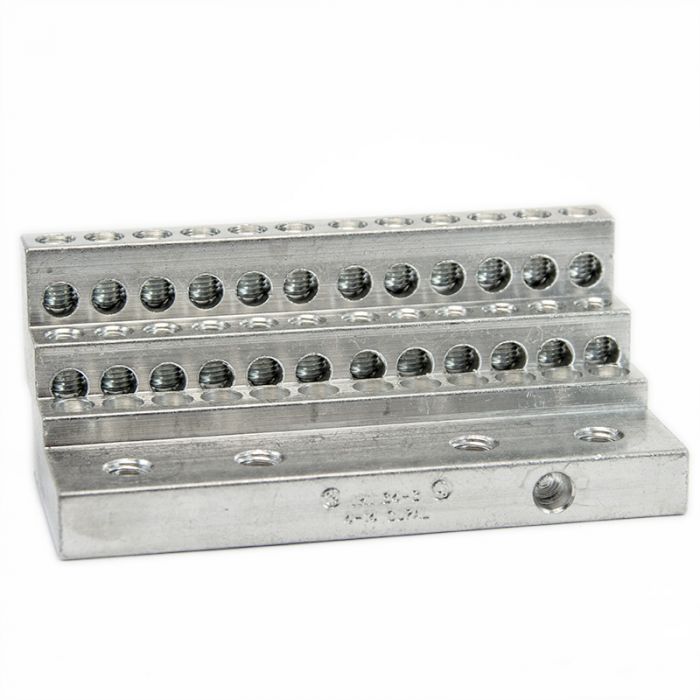

36S4-3 BodyWire Lug - 4 AWG
(36) thirty six 14 - 4 AWG wire holes lug for power distribution, power collection, structure grounding, floating ground or neutral bar applications.
- Buy 5 for $39.23 each and save 26%
- Buy 50 for $29.42 each and save 44%
36S4-3 Multi-wire hole LUG BODY ONLY
(36) thirty six 14 - 4 AWG wire holes lug for power distribution, power collection, structure grounding, floating ground or neutral bar applications.
UL486 ZMVV Listed, UL508A SA1.1 Listed category, and CSA Certified. (2) two mounting bolt holes with clearance for ¼” bolts and threaded for 5/16 UNC bolts, SOLD SEPARATELY.
May be bus mounted, bare panel case, or bare chassis mounted or insulated using optional UL508A List SA1.1 category QEUY2 Recognized standoffs for power voltages up to 1500V and floating ground applications when used in accordance with UL508A and NEC code requirements. Copper and tin plated aluminum high strength alloy. Zinc plated steel slotted screws.
 |
| This part is designed to be cutomized with these other options: |
   |

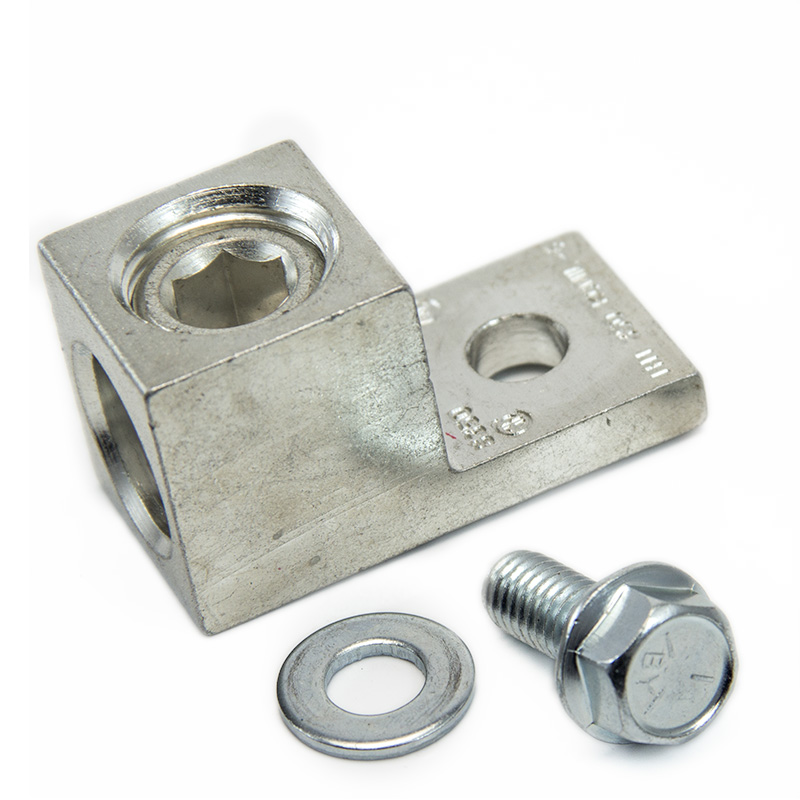

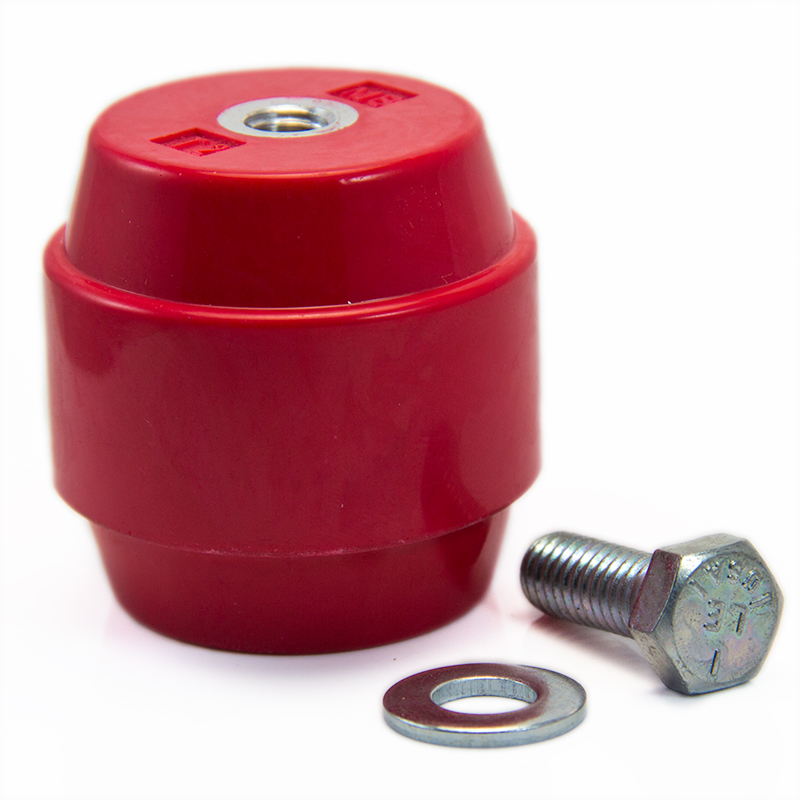

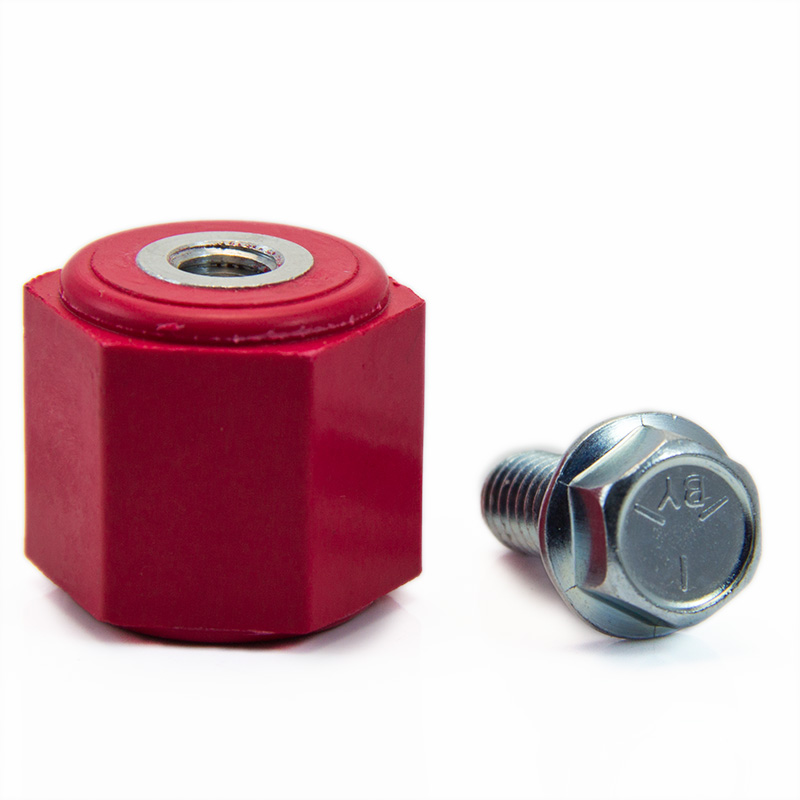

| 600 Volt Insulator | 2000 Volt Insulator | 350kcmil-6AWG Stand-Off Lug |
UL508A Information on Standoff Insulators
| For More Information Click the Icons Below | |||||||
 |
 |
 |
 |
 |
 |
 |
RoHS 10/10 |
| SKU | 36S4-3 |
|---|---|
| Number of Wires | 36 Wires |
| Condition | New |
| AWG Wire Range | 4 - 14 AWG |
| FLEX Wire Range | No FLEX Wire |
| Screw Type | Slotted Screw |
| CSA Canadian Standards Association Certified | Yes |
| UL | UL Listed (UL) |
| Meets RoHS | Yes |
