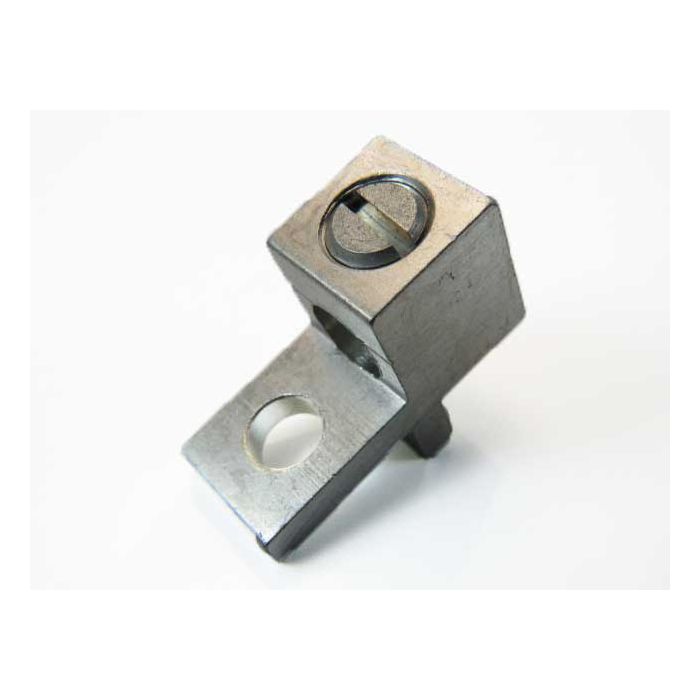

"S1/0-TP" Single Wire Lugs (1/0-14 AWG) & FLEX Wire (1-8 AWG)
In stock
SKU
S1/0-TP
One barrel tin plated aluminum metric wire lug for use with 1/0-14 AWG wire. This single barrel lug can be used with aluminum or copper wire. Convenient 1/4" mounting hole for easy installation.
UL & CSA Approved for
Multiple Wires 2X #14 to 2X #4
and FLEX wire Class G-K sizes 1-8 AWG
$1.53
- Buy 265 for $1.14 each and save 25%
- Buy 900 for $0.85 each and save 44%
"S1/0-TP" 1/0-14 AWG wire range, Multiple (dual) Class B/C wires and FLEX wire, 1-8 AWG class G-K including mm2 class 5, 1 barrel, aluminum or copper wire, CU9AL, 90C temperature rating, one mounting hole with anti-rotation rib(turn prevent) , Slotted Screw, UL Listed, CSA Certified. Tranformer Lug - Replace Low conducting bronze with High Conductivity Dual Rated Aluminum. 5/16" bolt. IHI brand.
Use of Ferrules (UL Listed) on 1-8 AWG
- Convenient inspection window to visually inspect full conductor insertion
- Made with 6061-T6 aluminum to provide maximum electrical contact and performance
- Electro tin-plated, to warrant against corrosion
- Plated aluminum or steel screw provides durable long lasting contact between the conductor and connector.
- TRANSFORMER LUG. HEX SOCKET SCREW & TURN PREVENT.
- 0.375" (9,5mm) FROM MOUNTING HOLE TO RIB WALL
 |
| For More Information Click the Icons Below | ||||||
 |
 |
 |
 |
 |
|
RoHS 9/10 |
| SKU | S1/0-TP |
|---|---|
| Number of Wires | 1 Wire |
| Condition | New |
| AWG Wire Range | 1/0 - 14 AWG |
| FLEX Wire Range | 1-8 AWG |
| Screw Type | Slotted Screw |
| CSA Canadian Standards Association Certified | Yes |
| UL | UL Listed (UL) |
| Meets RoHS | Yes |
