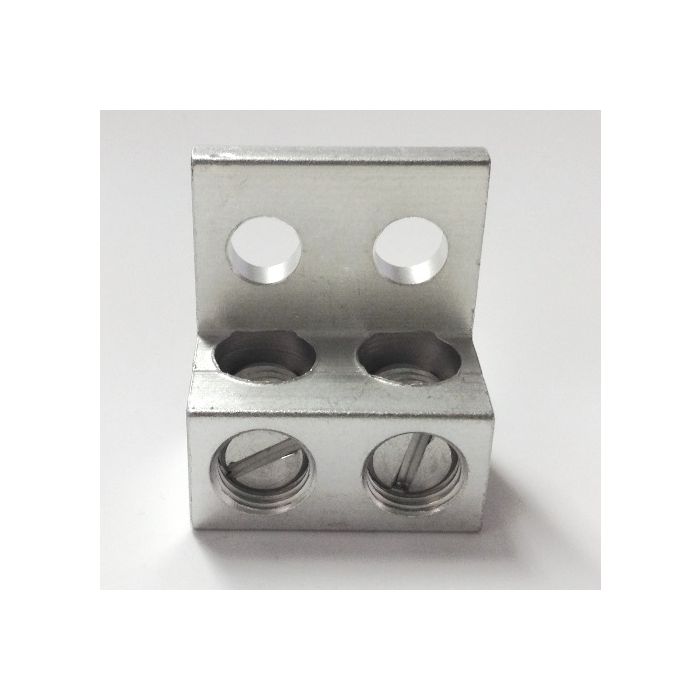

"2S2/0-31-42" Double Wire Lugs (2/0-14 AWG) & FLEX Wire (1/0-14 AWG)
In stock
SKU
2S2/0-31-42
Double wire lugs, 2/0-14 AWG, and FLEX wire, 1/0-14 AWG, G-K including mm2 class 5. TURN PREVENT USING TWO 1/4" bolts (hole is .315 +/-.007) mounting holes. UL & CSA Approved for FLEX wire Class G-K sizes #14-#1/0 AWG.
WIRE CONNECTORS AND SOLDERING LUGS (ZMVV): INSTALLATIONWire connectors are intended for use in installations covered by ANSI/NFPA 70, ‘‘National Electrical Code’’ (NEC), and should be installed using the prescribed manufacturer’s installation instructions.
"Stacking of connectors (multiple connectors assembled using a single bolt, nut and washers) may be permitted where mechanical interference is reduced or eliminated with the use of offset tangs, stacking adapters, andthe like. The surface contact area of the mounting tang should make completecontact with the mounting surface or the previously stacked connector tang."
Ref. UL White Book ZMVV section
Ref. UL White Book ZMVV section
Lugs sold individually.
.png){kind=small}
$2.60
- Buy 160 for $1.93 each and save 26%
- Buy 500 for $1.45 each and save 44%
"2S2/0-31-42" 2/0-14 AWG wire range, and FLEX wire, 1/0-14 AWG, G-K including mm2 class 5, 2 barrel, aluminum or copper wire, CU9AL, 90C temperature rating, TURN PREVENT USING TWO 1/4" bolts (hole is .315 +/-.007) mounting holes. Shipped with regular slotted screw or TUFF SLOT™ closed slot which guides driver bit for rapid assembly (subject to availability). TUFF SLOT™ is a trademark of IHI Connectors®.
Use of Ferrules (UL Listed) on 1/0-14 AWG
 |
| For More Information Click the Icons Below | ||||||
 |
 |
 |
 |
 |
 |
RoHS 9/10 |
B&C Wire Size & Torque Rating
|
2/0-3 AWG
|
50 IN. LBS.
|
|
4-6 AWG
|
45 IN. LBS.
|
|
8 AWG
|
40 IN. LBS.
|
|
10-14 AWG
|
35 IN. LBS.
|
Class G-K Flex Wire Size & Torque Rating
|
1/0-1 AWG
|
75 IN. LBS.
|
|
1-4 AWG
|
55 IN. LBS.
|
|
4-8 AWG
|
50 IN. LBS.
|
| 8-10 AWG | 45 IN. LBS. |
| 10-14 AWG | 40 IN. LBS. |
|
175 Amp 75C Cu Wire
|
|
195 Amp 90C Cu Wire
|
|
135 Amp 75C Al Wire
|
|
150 Amp 90C Al Wire
|
|
Per Wire in Power Distribution or Collection Mode
|
| SKU | 2S2/0-31-42 |
|---|---|
| Number of Wires | 2 Wires |
| Condition | New |
| AWG Wire Range | 2/0 - 14 AWG |
| FLEX Wire Range | 1/0-14 AWG |
| Screw Type | Slotted Screw |
| CSA Canadian Standards Association Certified | Yes |
| UL | UL Listed (UL) |
| Meets RoHS | Yes |
