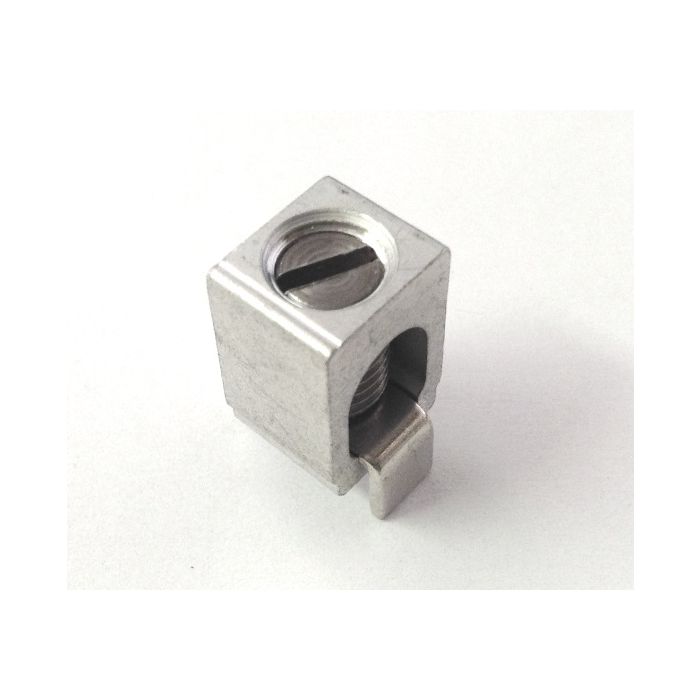

B2C-PCB-SS Solder Mounted Wire Lug for PCB's
In stock
SKU
B2C-PCB-SS
2-14 AWG, 115A AMP, Stainless Steel Slottted screws. 2 legs (.24X.05”) with a 0.16" (4mm) PCB penetration. Side wire, and top screw entrance.
UL Recognized & CSA certified
Made in the USA from domestic and imported parts.
$1.89
- Buy 190 for $1.41 each and save 25%
- Buy 2000 for $1.06 each and save 44%
- Buy 4000 for $0.95 each and save 50%
B2C-PCB-SS: 2-14 AWG, 115A AMP, Stainless Steel Slottted screws. 2 legs (.24X.05”) with a 0.16" (4mm) PCB penetration. Side wire, and top screw entrance.
Body and Staple THT Types: Wave and reflow solderable high current PCB wire terminal lug / connector for high amp power applications. THT (Through Hole Technology). Copper or aluminum wire, stranded and solid wire per UL486 wire code. Solid copper bus staple for tens of micro ohms range of copper to copper high conductivity, low resistance current path. Exceeds IEC volt drop test standards.
| For More Information Click the Icons Below | |||||||
 |
 |
 |
 |
 |
 |
|
RoHS 10/10 |
| SKU | B2C-PCB-SS |
|---|---|
| Number of Wires | 1 Wire |
| Condition | New |
| AWG Wire Range | 2 - 14 AWG |
| FLEX Wire Range | No FLEX Wire |
| Screw Type | Stainless Steel Slotted Screw |
| CSA Canadian Standards Association Certified | Yes |
| UL | UL Recognized (UR) |
| Meets RoHS | Yes |
