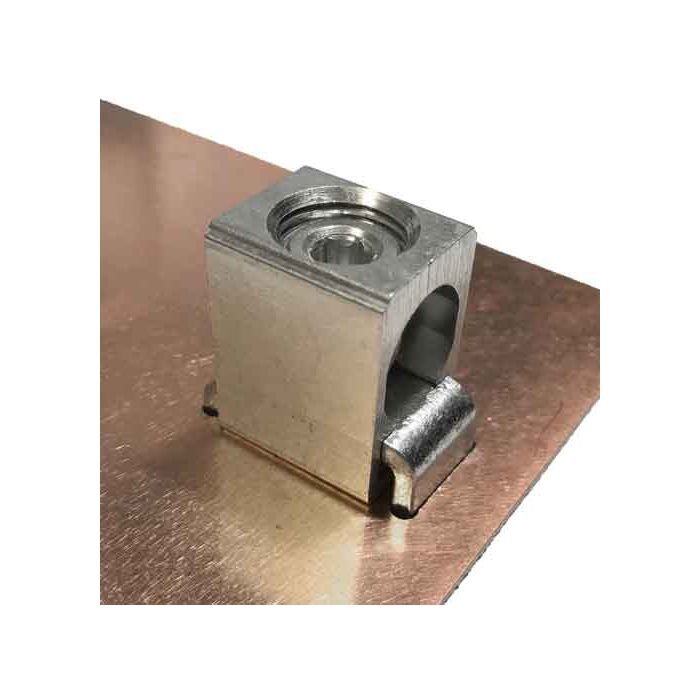

"B300-PCB" Solder Mounted Wire Lug for PCBs
B300-PCB: 300 kcmil - 4 AWG, 285A AMP, HEX socket screws. 2 legs at .625X.125" with a .17" (4.3mm) PCB penetration. Side wire, and top screw entrance.
- Buy 70 for $4.98 each and save 26%
- Buy 250 for $3.74 each and save 44%
- Buy 500 for $3.36 each and save 50%
B300-PCB: 300 kcmil - 4 AWG, 285A AMP, HEX socket screws. 285A AMP, 1/4" HEX socket screw, 300 kcmil-4 AWG wire range. 2 legs at .625X.125" with a .17" (4.3mm) PCB penetration. Side wire, and top screw entrance. International Hydraulics Inc.
Body and Staple THT Types
Wave and reflow solderable high current PCB wire terminal lug / connector for high amp power applications. THT (Through Hole Technology). Copper or aluminum wire, stranded and solid wire per UL486 wire code. Solid copper bus staple for tens of micro ohms range of copper to copper high conductivity, low resistance current path. Exceeds IEC volt drop test standards.
| For More Information Click the Icons Below | |||||||
 |
 |
 |
 |
 |
NO CSA |
|
RoHS 9/10 |
| SKU | B300-PCB |
|---|---|
| Number of Wires | 1 Wire |
| Condition | New |
| AWG Wire Range | 300 kcmil - 4 AWG |
| FLEX Wire Range | No FLEX Wire |
| Screw Type | Hex Socket |
| CSA Canadian Standards Association Certified | Yes |
| UL | UL Recognized (UR) |
| Meets RoHS | Yes |
