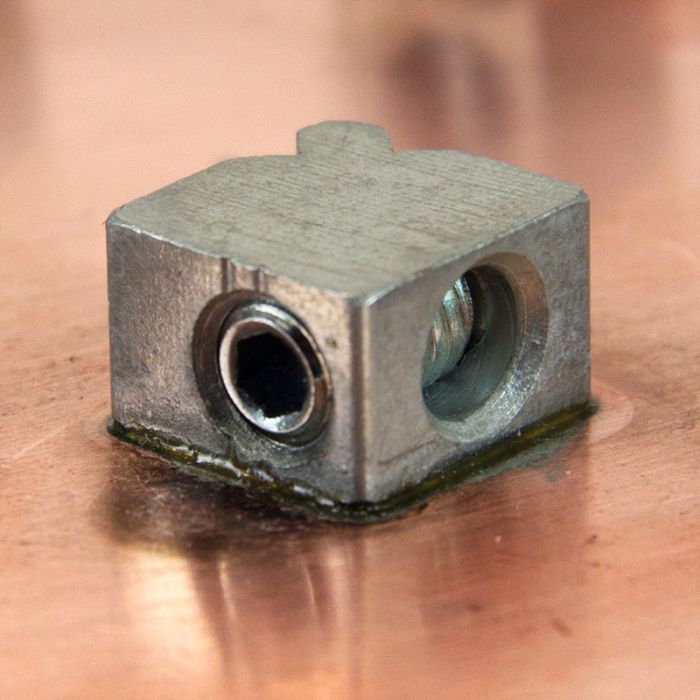

B4A-PCB-45-HEX (SMT) Solder Mounted Wire Lug for PCB's
In stock
SKU
B4A-PCB-45-HEX.
4-18 AWG, 65 AMP, HEX socket screw. Top wire, and scrwe entrance at 45 degrees.
No UL or CSA Certification
$1.11
- Buy 355 for $0.83 each and save 25%
- Buy 3000 for $0.62 each and save 44%
- Buy 6000 for $0.56 each and save 50%
B4A-PCB-45-HEX: 4-18 AWG, 65 AMP, HEX socket screw. Top wire, and scrwe entrance at 45 degrees.
One piece SMT / SMD Solderable Body Types: Wave and reflow solderable high current PCB wire terminal lug / connector for high amp power applications. SMT / SMD (Surface Mount Technology, Surface Mount Device). View Soldering Temperature Profiles here. Copper or aluminum wire, stranded and solid wire per UL486 wire code. Solid mass, high conductivity aluminum alloy body for tens of micro ohms range of resistance wire to foil conductivity, low resistance current path. Exceeds IEC volt drop test standards. Variety of wire binding screw options.
Precuations when using SMT and SMT FAQ
| For More Information Click the Icons Below | ||||||
 |
 |
 |
 |
NO UL,UR |
NO CSA |
RoHS 10/10 |
| SKU | B4A-PCB-45-HEX. |
|---|---|
| Number of Wires | 1 Wire |
| Condition | New |
| FLEX Wire Range | No FLEX Wire |
| Screw Type | Hex Socket |
| CSA Canadian Standards Association Certified | No |
| UL | Not UL Listed or Recognized |
| Meets RoHS | Yes |
