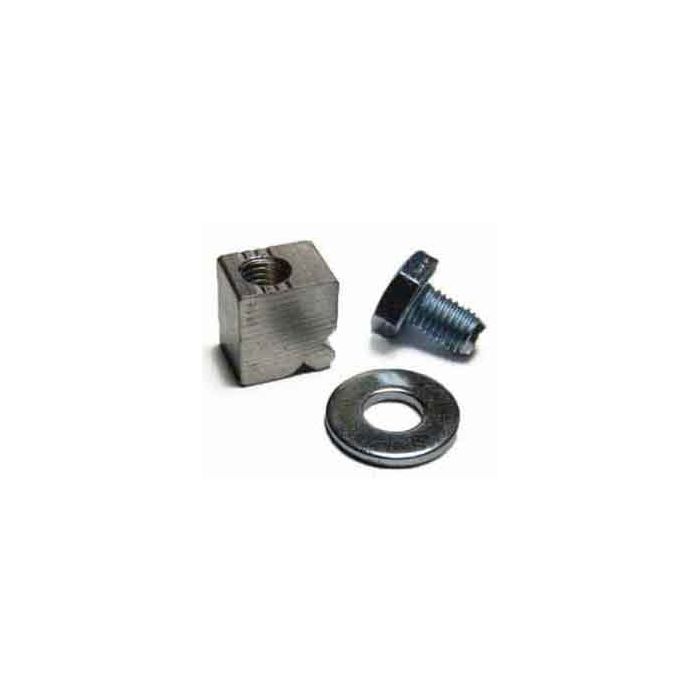

B4A-PCB-45-RLM KIT (SMT) Solder Mounted Wire Lug for PCB's
In stock
SKU
B4A-PCB-45-RLM.
4-18* AWG, 85 AMP, Hex cap screw, and washer. Top wire
No UL/CSA listing - OEM Part
Made in the USA from domestic and imported parts.
$1.32
- Buy 380 for $0.98 each and save 26%
- Buy 1500 for $0.74 each and save 44%
- Buy 3000 for $0.66 each and save 50%
B4A-PCB-45-RLM (KIT): 4-18* AWG, 85 AMP, Hex cap screw. Top wire
One piece SMT / SMD Solderable Body Types: Wave and reflow solderable high current PCB wire terminal lug / connector for high amp power applications. SMT / SMD (Surface Mount Technology, Surface Mount Device). View Soldering Temperature Profiles here. Copper or aluminum wire, stranded and solid wire per UL486 wire code. Solid mass, high conductivity aluminum alloy body for tens of micro ohms range of resistance wire to foil conductivity, low resistance current path. Meets IEC volt drop test standards. Variety of wire binding screw options.
Precuations when using SMT and SMT FAQ
| For More Information Click the Icons Below | ||||||
 |
 |
 |
NO UL,UR |
NO CSA |
RoHS 10/10 |
|
| SKU | B4A-PCB-45-RLM. |
|---|---|
| Number of Wires | 1 Wire |
| Condition | New |
| FLEX Wire Range | No FLEX Wire |
| Screw Type | Hex Cap Screw 1/4"-28 UNF & Washer |
| CSA Canadian Standards Association Certified | No |
| UL | Not UL Listed or Recognized |
| Meets RoHS | Yes |
