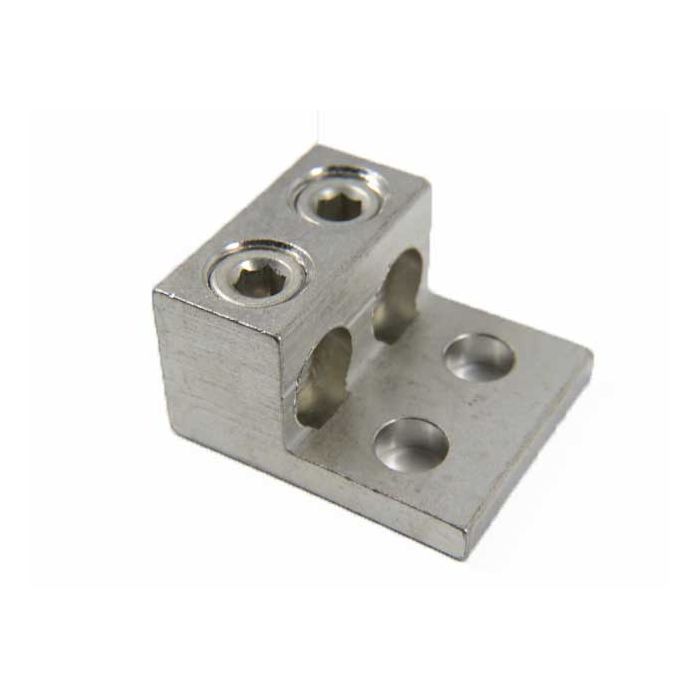

"2S2/0-31-42-HEX" Double Wire Lugs (14-2/0 AWG) & FLEX Wire (1/0-14 AWG)
In stock
SKU
2S2/0-31-42-HEX
"2S2/0-31-42-HEX" 2/0-14 AWG wire range, and FLEX wire, 1/0-14 AWG, class G-K including mm2 class 5, Hex socket screw, TURN PREVENT USING TWO 1/4" bolts (hole is .315 +/-.007) mounting holes, UL Listed, CSA Certified. Made in the USA.
WIRE CONNECTORS AND SOLDERING LUGS (ZMVV): INSTALLATIONWire connectors are intended for use in installations covered by ANSI/NFPA 70, ‘‘National Electrical Code’’ (NEC), and should be installed using the prescribed manufacturer’s installation instructions.
"Stacking of connectors (multiple connectors assembled using a single bolt, nut and washers) may be permitted where mechanical interference is reduced or eliminated with the use of offset tangs, stacking adapters, andthe like. The surface contact area of the mounting tang should make completecontact with the mounting surface or the previously stacked connector tang."
Ref. UL White Book ZMVV section
Ref. UL White Book ZMVV section
Lugs sold individually.
$2.53
- Buy 160 for $1.88 each and save 26%
- Buy 500 for $1.41 each and save 44%
"2S2/0-31-42-HEX" 2/0-14 AWG wire range, and FLEX wire, 1/0-14 AWG, G-K including mm2 class 5, 2 barrel, aluminum or copper wire, Hex socket screw, CU9AL, 90C temperature rating, TURN PREVENT USING TWO 1/4" bolts (hole is .315 +/-.007) mounting holes, UL Listed, CSA Certified. Made in the USA.
UL & CSA Approved for FLEX wire Class G-K sizes 1/0-14 AWG.
Use of Ferrules (UL Listed) on 1/0-14 AWG
 |
| For More Information Click the Icons Below | ||||||
 |
 |
 |
 |
 |
|
RoHS 10/10 |
B&C Wire Size & Torque Rating
|
2/0-3 AWG
|
50 IN. LBS.
|
|
4-6 AWG
|
45 IN. LBS.
|
|
8 AWG
|
40 IN. LBS.
|
|
10-14 AWG
|
35 IN. LBS.
|
Class G-K Flex Wire Size & Torque Rating
|
1/0-1 AWG
|
75 IN. LBS.
|
|
1-4 AWG
|
55 IN. LBS.
|
|
4-8 AWG
|
50 IN. LBS.
|
| 8-10 AWG | 45 IN. LBS. |
| 10-14 AWG | 40 IN. LBS. |
|
175 Amp 75C Cu Wire
|
|
195 Amp 90C Cu Wire
|
|
135 Amp 75C Al Wire
|
|
150 Amp 90C Al Wire
|
|
Per Wire in Power Distribution or Collection Mode
|
| SKU | 2S2/0-31-42-HEX |
|---|---|
| Number of Wires | 2 Wires |
| Condition | New |
| AWG Wire Range | 2/0 - 14 AWG |
| Screw Type | Hex Socket |
| CSA Canadian Standards Association Certified | Yes |
| UL | UL Listed (UL) |
| Meets RoHS | Yes |
