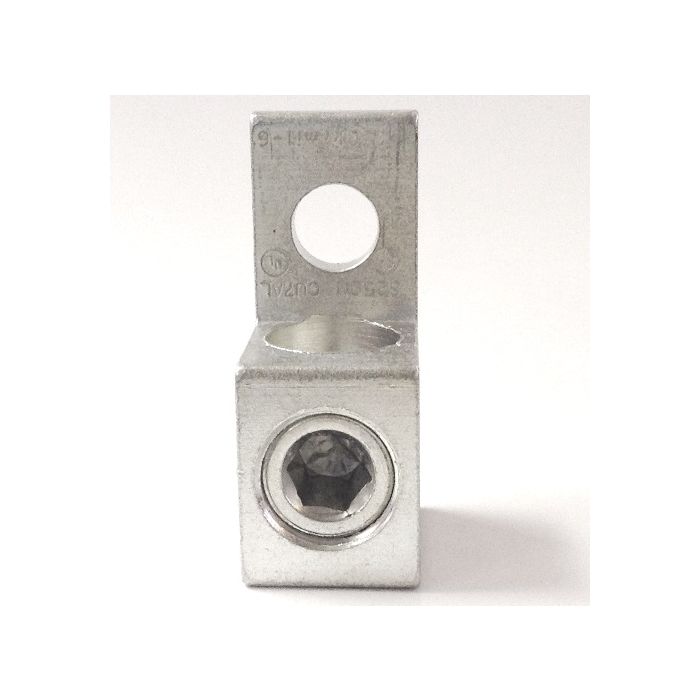

"S250-10.2-20M" Single Wire Lug (250 kcmil (4/0 AWG)-6 AWG) & FLEX Wire (3/0-6 AWG)
In stock
SKU
S250-10.2-20M
Single wire lug, 6 - 250 kcmil (4/0 AWG) AWG wire range, and Flex wire, 3/0-6 AWG, class G-K including mm2 class 5. NEMA mounting holes and spacing; this is not a NEMA tested part.
UL & CSA Approved for Multiple wires
class B, C, 2X AWG 2-6 &2X 25-16 mm2
& FLEX wire Classes G-K sizes #6-#3/0 AWG
Made in the USA from domestic and imported parts..
$8.65
- Buy 95 for $6.43 each and save 26%
- Buy 375 for $4.82 each and save 44%
"S250-10.2-20M" 6 - 250 kcmil (4/0 AWG) AWG wire range, 3/8" (M10) bigger bolt mounting, NARROWER WIDTH Multiple (dual) class B/C and FLEX wire, 3/0-6 AWG, class G-K including mm2 class 5, 1 barrel, aluminum or copper wire, CU7AL, 75C temperature rating, one mounting hole , UL Listed, CSA Certified. Larger 3/8" mounting bolt hole (Hole 0.40 inch dia.
), NEMA mounting holes and spacing; this is not a NEMA tested part. IHI brand.
 |
| For More Information Click the Icons Below | ||||||
 |
 |
 |
 |
 |
|
RoHS 10/10 |
| 250-1kcmil | 375 IN. LBS. |
| 2-6 AWG | 275 IN. LBS. |
|
3/0-1 AWG |
375 IN. LBS. |
| 2-6 AWG | 275 IN. LBS. |
| 255 Amp 75C Cu Wire |
| 290 Amp 90C Cu Wire |
| 205 Amp 75C Al Wire |
| 230 Amp 90C Al Wire |
| SKU | S250-10.2-20M |
|---|---|
| Number of Wires | 1 Wire |
| Condition | New |
| AWG Wire Range | 250 kcmil - 6 AWG |
| FLEX Wire Range | 3/0-6 AWG |
| Screw Type | Hex Socket |
| CSA Canadian Standards Association Certified | Yes |
| UL | UL Listed (UL) |
| Meets RoHS | Yes |
