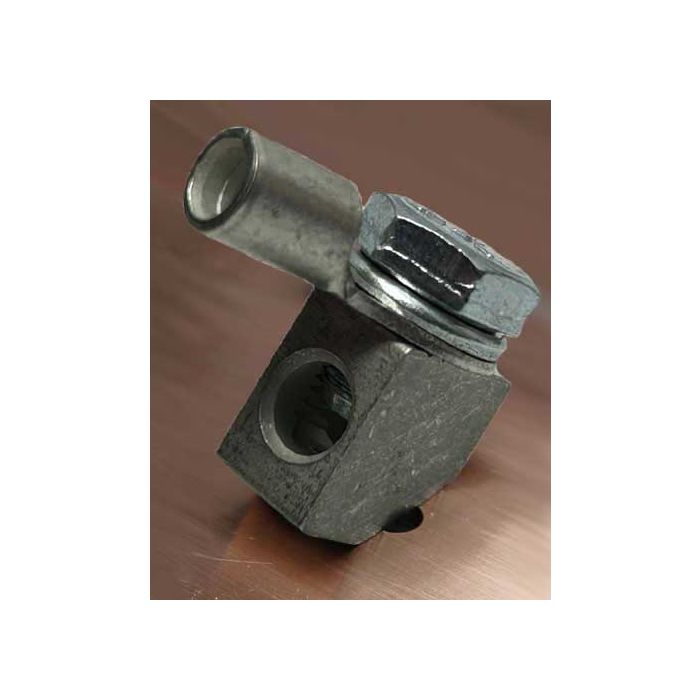

B6A-PCB-45-RLM-12W KIT THT Ring Lug Mount Block up to 65 Amps Hex Cap Screw and M6 Washer
Ring lug mount block with integrated aluminum foot, tin plated, solderable. 1 LEG at .336X.14” (8.5X3.5mm) 0.10" 2.54mm PCB penetration. Suggested ring lug wire sizes 6-16 AWG, up to 65 AMP. Kitted with a zinc plated steel 1/4-28 hex cap bolt and M6 washer.
- Buy 315 for $1.14 each and save 25%
- Buy 1500 for $0.85 each and save 44%
- Buy 3000 for $0.77 each and save 50%
B6A-PCB-45-RLM-12W-KIT: Ring lug mount block with integrated aluminum foot, tin plated, solderable. 1 LEG at .336X.14” (8.5X3.5mm) 0.10" 2.54mm PCB penetration. Suggested ring lug wire sizes 6-16 AWG, up to 65 AMP. Kitted with a zinc plated steel 1/4-28 hex cap bolt and M6 washer. Ring lug mount and top bolt entrance. Part side hole not intended for wire insertion when the part is used as a ring lug mount. When tightening bolt, two wrenches should be used to avoid damaging solder bond. International Hydraulics Inc® brand.
Temperature Range and Rating Guide
One piece Body THT Types
Wave and reflow solderable high current PCB wire terminal lug / connector for high amp power applications. THT (Through Hole Technology). Wire choice affected by customer supplied ring lug and ring lug codes and ratings. Solid mass, high conductivity aluminum alloy body for tens of micro ohms range of resistance wire to foil conductivity, low resistance current path. Meets IEC volt drop test standards.
| For More Information Click the Icons Below | |||||
 |
 |
 |
 |
RoHS 10/10 |
|
| SKU | B6A-PCB-45-RLM-12W-KIT-THT |
|---|---|
| Number of Wires | 1 Wire |
| Condition | New |
| AWG Wire Range | 6 - 16 AWG |
| Screw Type | Hex Cap Screw 1/4"-28 UNF & M6 Washer |
| CSA Canadian Standards Association Certified | No |
| Meets RoHS | Yes |
